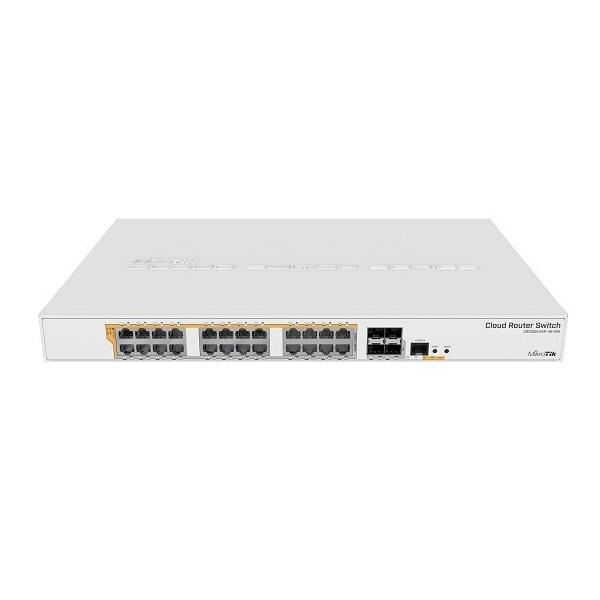

Cloud Router Switch Mikrotik CRS328-24P-4S+RM
- Hỗ trợ 4 cổng SFP+, 24 cổng 10/100/1000 Ethernet.
- Tổng công suất: 496W.
Switching features
- Non-blocking Layer 2 switching capacity.
- 16K host table.
- IEEE 802.1Q VLAN.
- Supports up to 4K simultaneous VLANs.
- Port isolation.
- Port security.
- Broadcast storm control.
- Port mirroring of ingress/egress traffic.
- STP/ RSTP/ MSTP.
- Access Control List.
- MikroTik neighbor discovery.
- SNMP.
- 10218-byte jumbo frames support.
- IGMP snooping.
- IEEE 802.3ad and static link aggregation.
Quick specifications
- 24 Gigabit Ethernet ports.
- 4 SFP+ ports.
- RJ45 serial console port.
- Non-Blocking throughput: 64 Gbps.
- Switching capacity: 128 Gbps.
- Forwarding rate: 95.2 Mpps.
- Maximum power consumption: 44 W (without PoE devices connected).
- Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE).
- Temperature based fan control.
- 1U rackmount.
- Selectable power output per port (26/ 53 V).
Đặc tính kỹ thuật
| Model | CRS328-24P-4S+RM |
| CPU | 98DX3236A1 800MHz |
| RAM | 512 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| Switch chip model | 98DX3236A1 |
| 10/100/1000 Ethernet ports | 24 |
| SFP+ cages | 4 |
| Operating system | SwOS / RouterOS (Dual boot) |
| Supported input voltage | 100 - 240 V |
| Dimensions | 443 x 300 x 44 mm |
| Operating temperature | -20°C-+60°C tested |
| Max power consumption | 44 W |
| Serial port | RJ45 |
| License level | 5 |
- Bảo hành: 12 tháng.
