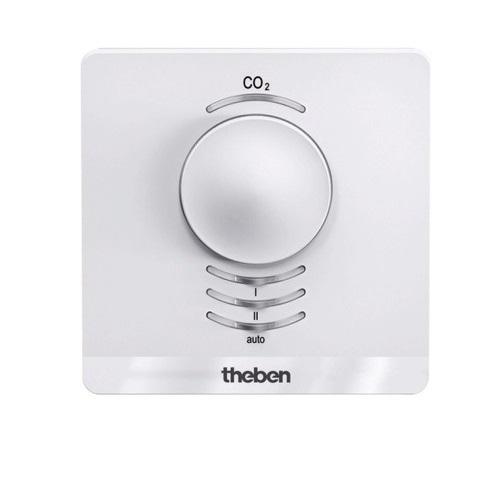

CO2 Sensor THEBEN AMUN 716 SR
- Part Number: 7160110.
- CO2 sensor.
- Suitable for conference and meeting rooms, offices, schools/nurseries, passive and low-energy housing.
- For fan control.
- Warning display for CO2 concentration (lights).
- Power unit optionally available. Power unit is suitable for flush mounted installation.
- Simple upgrade of uncontrolled ventilation systems possible.
- 2 switch outputs CO2 controlled for 2 stage control, with manual and automatic mode as well as display of switching status.
- 3 x 0–10 V outputs for CO2, temperature and relative humidity.
Đặc tính kỹ thuật
| Model | AMUN 716 SR |
| Operating voltage | 24 VAC/DC SELV |
| Outputs | 3 x 0-10 V, 2 x relay 5 A/250 VAC |
| Measuring range CO2 | 0 – 5000 ppm |
| Measuring range temperature | +5 °C … +40 °C |
| Measuring range humidity | 30 – 80 % rH |
| ON/OFF thresholds | 700 ppm ±200 ppm, 1300 ppm ±200 ppm |
| Type of connection | Screw terminals |
| Display | 6 LEDs |
| Installation type | Wall installation (also on flush-mounted socket possible) |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
