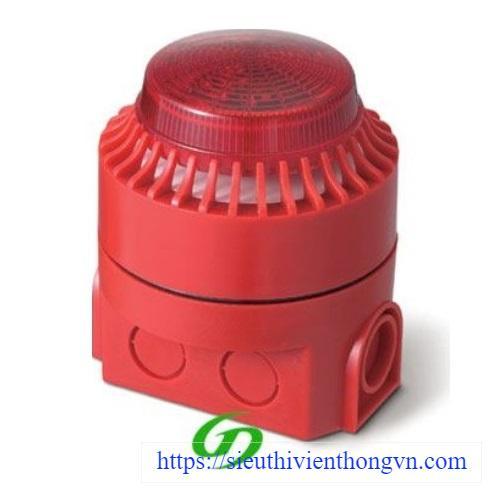

Còi báo cháy địa chỉ HORING TBR9-S
- Compatible with addressable fire alarm control panel QA16 or AN16.
- High sound output 90dB(A) at 1 meter.
- Two wire connection with loop-powered.
- Maximum 30pcs of TBR9 per loop.
- High efficiency light output.
- High efficiency light output.
Thông số kỹ thuật
| Model | TBR9-S |
| Type | Addressable Electronic Sounder |
| Input Source/ code | Zone signal / Binary coding |
| Operating Voltage | 26VDC |
| Standby Current | 850μA |
| Alarm Current | Under 8mA |
| Sound Output | 90 ±4 dB(A) at 1 meter |
| Sounder Output | 2.3~3.4KHz, 1.8Hz (ON 0.05S/OFF 0.5S) |
| Ingress Protection | IP65 |
| Max. number of device connected per loop | 30 pcs per loop *Horing Lih manufactured |
| Ambient Temperature | -20℃ ~ +50℃ |
| Ambient Humidity | 10% ~ 95% |
| Material | Fire-proof plastic |
| Color | Red |
| Dimensions(mm) | 92.5(Dia) x 103(H) |
- Bảo hành: 12 tháng.
