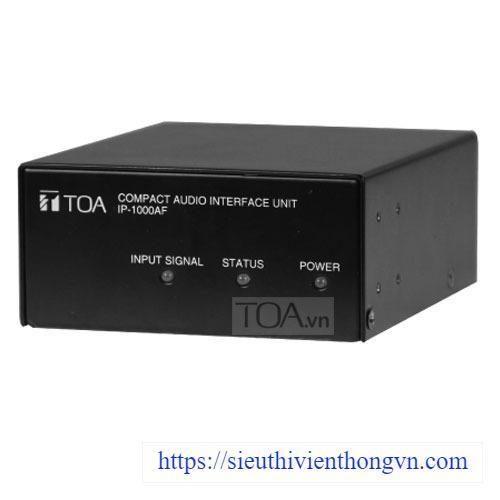

Compact Audio Interface Unit TOA IP-1000AF
- Can be mounted to different surfaces.
- Able to act as both input and output units in the network system.
- The device can also receive messages from server and other devices for initiating broadcast.
- Support using browser to change the device setting.
Specifications
| Model | IP-1000AF |
| Power Source | DC 24V |
| Current Consumption | Below 85mA |
| Audio Input | 1V rms (Max: 2V rms), unbalanced 10KΩ |
| Audio Output | 1V rms, unbalanced 600Ω |
| Frequency Response | LINE IN (Sampling Frequency: 22k): 20Hz -10kHz LINE OUT (MP3/Sampling Frequency: 44k): 40Hz -15kHz |
| Control Contact Input | Open circuit voltage: 24V DC; short circuit current: ≤5mA |
| Relay Normally Closed Contact (NC) Common Contact (COM) Normally Open Contact (NO) | Withstand voltage ≤30V DC, control current ≤500mA Withstand voltage ≤30V DC, control current ≤500mA Withstand voltage ≤30V DC, control current ≤500mA |
| Network I/F | 10 BASE-T/100 BASE-TX, auto negotiation |
| Network Protocol | UDP, ARP, ICMP, IGMP |
| Operation Temperature | 0°C to +40°C |
| Operation Humidity | Less than 90% RH (no condensation) |
| Dimension (W) x (H) x (D) | 91 x42 x106 mm |
| Accessory | 5P terminal blocks x 1, 4P terminal blocks x1, Plastic foot (10mmx3mm) x4 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
