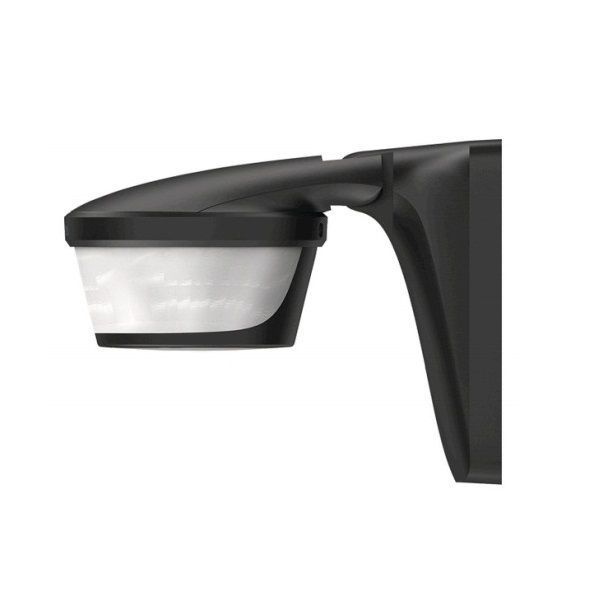

Công tắc cảm ứng chuyển động THEBEN theLuxa P220 BK
- Motion detector (PIR).
- Automatic lighting control based on presence and brightness.
- 220º detection angle.
- For outdoor use.
- For installation on walls and ceilings.
- For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses.
- Adjustable brightness switching value and switch-off delay.
- Sensitivity can be reduced to limit detection area.
- Area limit via lens attachment.
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
- Teach-in of current brightness value possible.
- Pulse function.
- Test function for checking detection area.
- Installation on flush-mounted socket possible (60 mm).
- Single-handed plug-in installation.
- Instant start-up possible via factory preset.
- Controls are place protected.
- Terminal for protective earth conductor.
- Spacer included in delivery.
Đặc tính kỹ thuật
| Model | theLuxa P220 BK |
| Operating voltage | 230 VAC |
| Frequency | 50Hz |
| Stand-by consumption | ~0,3W |
| Light measurement | Mixed light measurement |
| Number of channels | 1 |
| Installation type | Wall and ceiling installation |
| Setting range brightness | 5 – 1000 lx |
| Switching capacity light | 10 A (at 230 V AC, cos φ = 1), 10 AX (at 230 V AC, cos φ = 0.3) |
| Detection angle | 220º |
| Installation height | 2 – 4 m |
| Light switch-off delay | 1 s-20 min |
| Incandescent lamp load | 2300W |
| Fluorescent lamp load (conventional) parallel-corrected | 1300 VA 140 µF |
| Energy saving lamps | 300W |
| LED lamp < 2 W | 60W |
| LED lamp 2-8 W | 180W |
| LED lamp > 8 W | 200W |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Ambient temperature | -25ºC … +45ºC |
| Protection class | II |
| Type of protection | IP55 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
