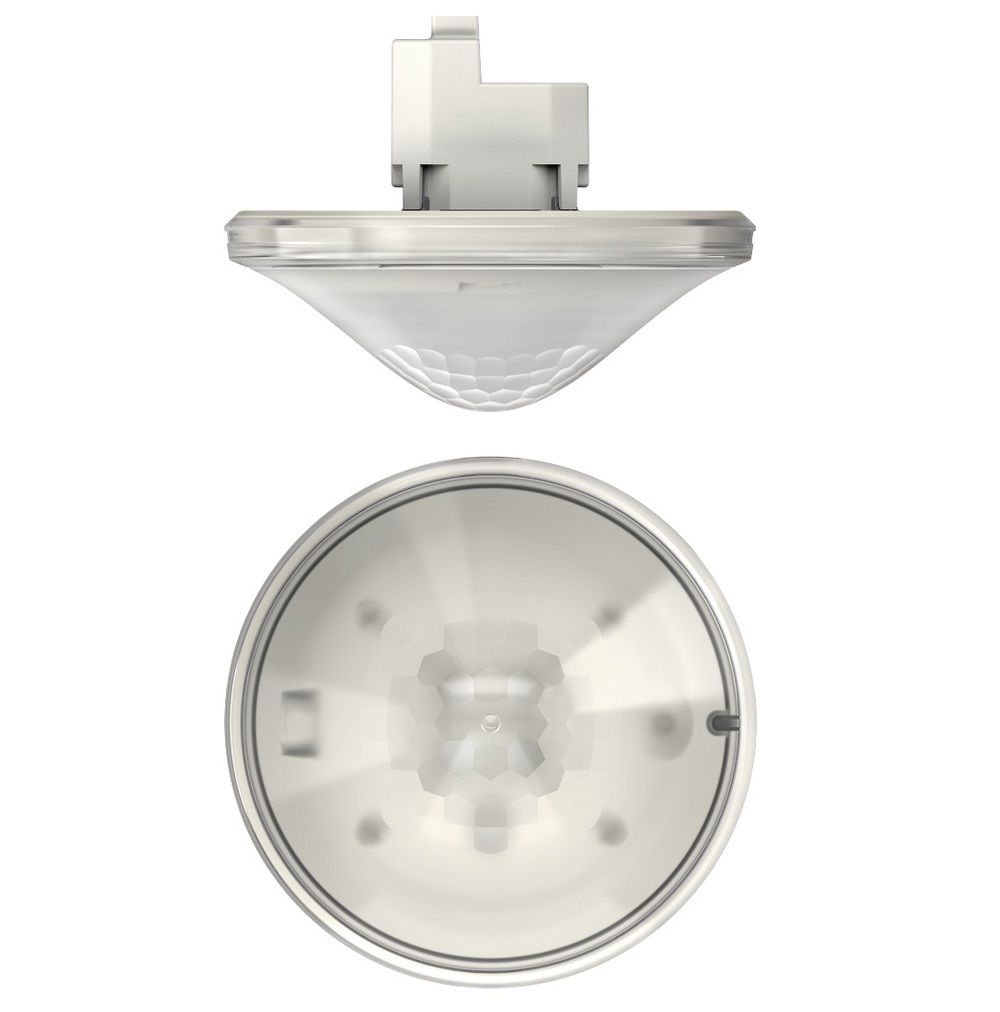

Công tắc cảm ứng hiện diện THEBEN thePrema S360-100 E UP WH
- Passive infrared presence detector for ceiling mounting.
- Square detection area 360° (up to 64 m²) for reliable and easy planning.
- Automatic presence- and brightness-dependent control for lighting.
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
- Channel A, light: Relay, 230V.
- Choice of fully or semi-automatic operation.
- Adjustable brightness switching value, teach-in function.
- Self-learning time delay.
- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch.
- Pulse function for staircase light time switch.
- Ready for immediate use due to factory preset.
- Exceptionally easy configuration of the energy-saving behaviour with the new «eco plus» function.
- Test mode for checking function and detection area.
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other.
- Ceiling installation in flush-mounted socket.
- Ceiling installation also possible with surface-mounted frame.
- User remote control theSenda S, management remote control SendoPro (optional).
- According to warranty terms and conditions, see www.theben.de/en/guarantee.
Đặc tính kỹ thuật
| Model | thePrema S360-100 E UP WH |
| Operating voltage | 110 - 230 VAC ± 10% |
| Frequency | 50 - 60Hz |
| Installation height | 2 – 3 m |
| Minimum height | > 1,7m |
| Installation type | Ceiling installation |
| Power consumption | ~0,1W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 5 – 3000 lx |
| Light switch-off delay | 10s-60 min |
| Type of contact light | Relay 230 V/10 A µ-contact |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/ halogen lamp load | 2300W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 800 A / 200 µs |
| Compact and flourescent lamps (Number of electronic ballasts) | 16 x 54/58 W, 24 x 35/36 W, 8 x 2 x 54/58 W, 12 x 2 x 35/36 W |
| LED lamp < 2 W | 60W |
| LED lamp 2-8 W | 180W |
| LED lamp > 8 W | 200W |
| Type of connection | Screw terminals |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Ambient temperature | +0°C … +50°C |
| Type of protection | IP40 (when fitted) |
| Conformity to type CE | This device complies with the protection regulations of the EMC directives 2014/30/EU and of the Low Voltage directive 2014/35/EU. |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
