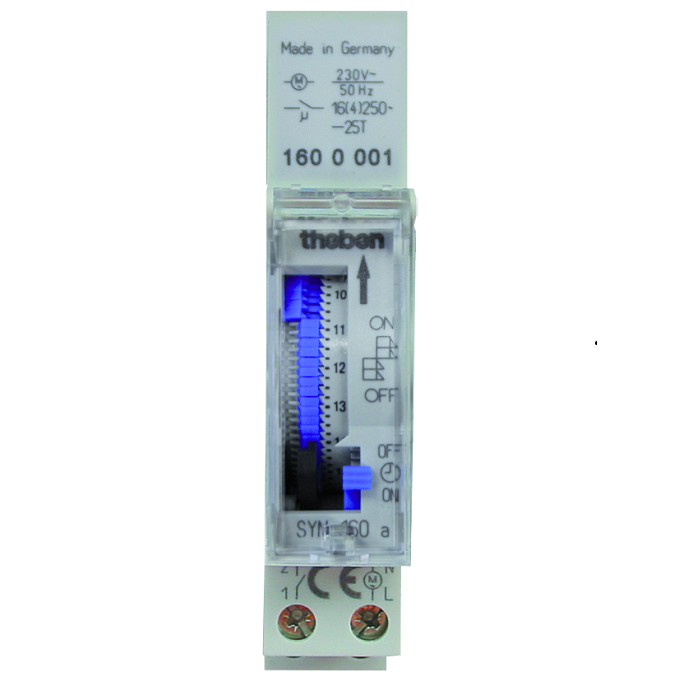

Công tắc hẹn giờ dạng cơ THEBEN SYN 160 a
- Analogue time switch
- 1 channel
- Daily program
- Without power reserve
- 96 switching segments
- Synchronised with mains
- Shortest switching time: 15 minutes
- Screw terminals
- Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
- Switching status display
Specifications
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Number of channels | 1 |
Program | Daily program |
Width | 1 modules |
Installation type | DIN rail |
Type of connection | Screw terminals |
Drive | Synchronous motor |
Program | Daily program |
Switching capacity at 250 V AC, cos φ = 1 | 16 A |
Switching capacity at 250 V AC, cos φ = 0,6 | 4:00 AM |
Incandescent/halogen lamp load | 1000 W |
Shortest switching times | 15 min |
Programmable every | 15 min |
Time accuracy | Synchronised with mains |
Type of contact | NO contact |
Switching output | Potential-free and phase-independent |
Number of switching segments | 96 |
Stand-by consumption | 0,9 W |
Test approval | VDE |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Type of protection | IP 20 |
Protection class | II as per EN 60 730-1 |
Ambient temperature | -25 °C ...+50 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
