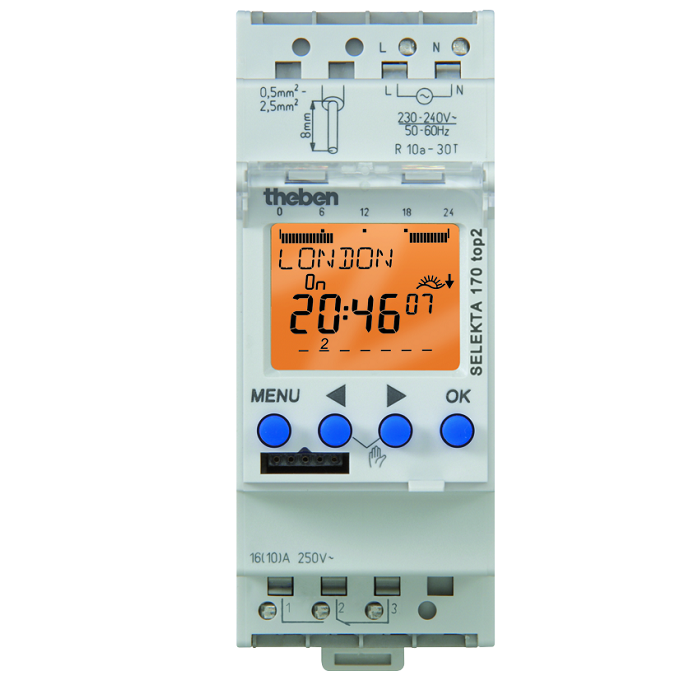

Công tắc hẹn giờ kỹ thuật số THEBEN SELEKTA170top2

Công tắc hẹn giờ kỹ thuật số THEBEN SELEKTA170top2

Giá : Liên hệ

Công tắc hẹn giờ kỹ thuật số THEBEN SELEKTA170top2

Công tắc hẹn giờ kỹ thuật số THEBEN SELEKTA 170 top2

- Astronomical time switch with weekly program

- 1 channel

- 56 memory locations

- Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)

- Offset for adjusting of sunrise and sunset times

- Position data via coordinates or country/city lists can be programmed

- Fixed ON-OFF switching times can be programmed (e.g. night time interruption)

- Simulation of switching times (calculated astronomical times and programmed ON/OFF switching times)

- Reversible astronomical mode (evenings ON - mornings OFF or evenings OFF - mornings ON) or can be deactivated

- DuoFix spring terminals

- For 2 conductors each

- Wire or strand (with or without wire end sleeve)

- Wire diameter: 0.5 - 2.5 mm

- Button for releasing plug-in connection

- Text-oriented user guidance in display

- Preset date and time

- fully operable without mains connection

- Interface for OBELISK top2 memory card (PC programming)

- 2 insertable switching program

- Copying programs

- Storing programs

-10 year power reserve (lithium battery)

- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)

- Calculated astronomical switching times

- Programmable ON-OFF switching times

- Switching preselection

- Permanent switching ON/OFF

- Integrated operating hour counter

- Reset option

- Service function for monitoring maintenance intervals

- Holiday program

- Display back light (can be turned off)

- PIN coding

- Automatic summer/winter time changeover

- can be deactivated

- Date rule options are already stored for Europe, the USA and other countries

- own date rule options or changeover around set dates are available



Specifications

Operating voltage

230-240 V AC

Frequency

50-60 Hz

Width

2 modules

Installation type

DIN rail

Type of contact

Changeover contact

Switching output

Potential-free and phase-independent

Opening width

< 3 mm

Program

Weekly program, Astronomical program

Program functions

ON-OFF

Number of channels

1

Number of memory locations

56

Power reserve

10 years

Switching capacity at 250 V AC, cos φ = 1

16 A

Switching capacity at 250 V AC, cos φ = 0,6

10:00 AM

Incandescent/halogen lamp load 230 V

2600 W

Energy saving lamps 230 V

22 x 7 W, 18 x 11 W, 16 x 15 W, 16 x 20 W, 14 x 23 W

Fluorescent lamp load (conventional) not corrected

2300 VA

Fluorescent lamp load (conventional) series-corrected

2300 VA

Fluorescent lamp load (conventional) parallel-corrected

730 VA

Fluorescent lamp load (electronic ballast)

650 W

Switching capacity min.

ca. 10 mA

Shortest switching times

1 min

Time accuracy

≤ ± 0.5 s/day (quartz)

Time basis

Quartz

Stand-by consumption

0,8 W

Test approval

VDE

Type of connection

DuoFix spring terminals

Keyboards

4 touch buttons

Housing and insulation material

High-temperature resistant, self-extinguishing thermoplastic

Type of protection

IP 20

Protection class

II as per EN 60 730-1

Ambient temperature

-30°C...+55°C



Hãng sản xuất THEBEN của Đức.

Bảo hành: 12 thang.
