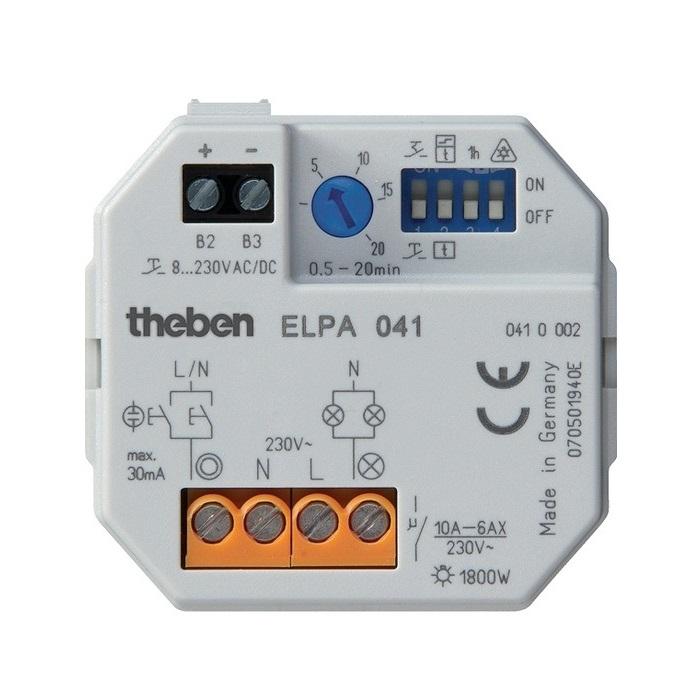

Công tắc hẹn giờ Staircase THEBEN ELPA 041
- Flush-mounted staircase time switch, electronic.
- Multi-functional device with 12 available functions, set at the front of the device.
- Switch or push button connectable, i.e. existing switches can be used (e.g. when updating).
- Additional multi-voltage input electrically isolated for AC/DC 8...240 V, e.g. for intercoms.
- Switch-off pre-warning (two double flashes) in accordance with DIN 18015-2 to avoid sudden darkness.
- 60 min. extended function activated via long button press.
- Immediate secondary switching (stair light switch) or prematurely switched off (pulse switch with switch-off delay).
- Suitable for upgrades and new installation.
- Zero-cross switching for relay-saving switching and high lamp loads.
- Push button input with electronic overload protection.
- Automatic 3 or 4 conductor detection (4 conductor with connection for floor lighting, 3 conductor no longer permitted for new systems).
- Extremely accurate.
- Immediate secondary switching.
Specifications
| Model | ELPA 041 |
| Operating voltage | 230 VAC |
| Frequency | 50 - 60 Hz |
| Installation type | Flush-mounted |
| Stand-by consumption | ~0,1W |
| Glow lamp load | 30 mA |
| Setting range time | 0,5 – 20 min |
| Type of connection | 3-/4-conductors |
| 3/4-way conductors | Automatic |
| Secondary switching | At once |
| Type of contact | NO contact |
| Opening width | < 3 mm (µ) |
| Switching output | Not Potential-free (230V) |
| Incandescent/halogen lamp load | 1800 W |
| Fluorescent lamp load (conventional) lead-lag circuit | 1200 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 580 VA 54 µF |
| Energy saving lamp | 110W |
| LED lamp < 2 W | 20W |
| LED lamp 2-8 W | 70W |
| LED lamp > 8 W | 100W |
| Fluorescent lamp load (electronic ballast) | 200 W |
| Fluorescent lamp load (conventional) series-corrected | 1200 VA |
| Switching capacity | 6 AX (at 230 V AC, cos φ = 0.3), 10 A (at 230 V AC, cos φ = 1) |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -25°C … +45°C |
| Type of protection | IP20 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
