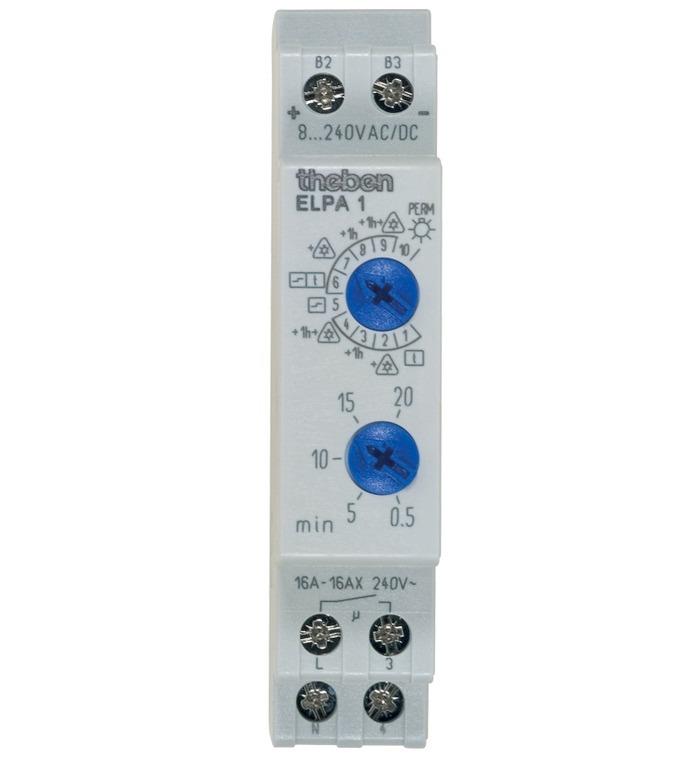

Công tắc hẹn giờ Staircase THEBEN ELPA 1
- Staircase time switch, electronical.
- Zero-cross switching for relay-saving switching and high lamp loads.
- Multi-functional device with 10 available functions, set at the front of the device.
- Additional multi-voltage input electrically isolated for AC/DC 8...240V.
- Switch-off pre-warning (two double flashes) in accordance with DIN 18015-2 to avoid sudden darkness.
- Extended function activated via long button press.
- Immediate secondary switching (stair light switch) or prematurely switched off (pulse switch with switch-off delay).
- Permanent switch.
- Electronic pulse light.
- Terminal layout same as ELPA 8.
- Extremely accurate.
- Push button input with electronic overload protection.
- Automatic 3 or 4 conductor detection (4 conductor with connection for floor lighting, 3 conductor no longer permitted for new systems).
Specifications
| Model | ELPA 1 |
| Operating voltage | 220 – 240 VAC |
| Frequency | 50 – 60 Hz |
| Width | 1 module |
| Stand-by consumption | ~0,9W |
| Capacity loss max | 1W |
| Glow lamp load | 150 mA |
| Setting range time | 0,5 – 20 min |
| Type of connection | 3-/4-conductors |
| 3/4-way conductors | Automatic |
| Secondary switching | At once |
| Duty cycle in per cent | 100 |
| Type of contact | NO contact |
| Opening width | < 3 mm (µ) |
| Switching output | Not Potential-free (230V) |
| Incandescent/halogen lamp load | 3600 W |
| Fluorescent lamp load (conventional) lead-lag circuit | 3600 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 1200 VA 120 µF |
| Energy saving lamp | 250W |
| LED lamp < 2 W | 55W |
| LED lamp 2-8 W | 150W |
| LED lamp > 8 W | 180W |
| Fluorescent lamp load (electronic ballast) | 1000W |
| Fluorescent lamp load (conventional) series-corrected | 3600 VA |
| Fluorescent lamp load (conventional) not corrected | 3600 VA |
| Switching capacity | 16 AX (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1) |
| Switch for permanent light | Rotary switch |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -25°C … +50°C |
| Type of protection | IP20 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
