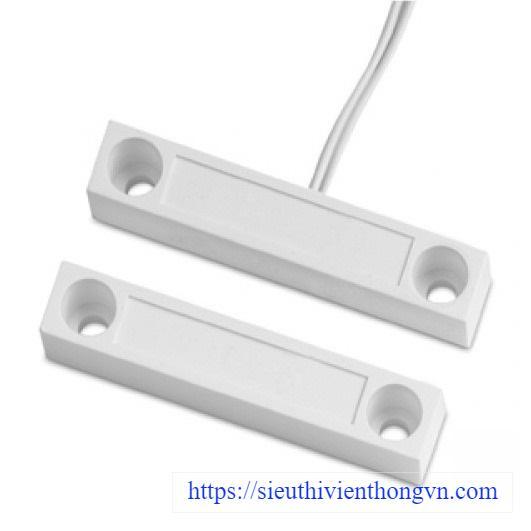

Công tắc từ cửa sắt Networx GE Security 1085N
– The GE Security 1085 Series surface mount magnetic contacts are designed for use in installations where a small, sealed unit is required.
– The reed switch is totally encapsulated in GE Security's exclusive polyurethane potting compound preventing moisture from entering the switch and causing false alarms.
– The 5/8 inch standard gap distance allows for fast, easy installation and prevents false alarms from loose fitting doors.
– Recessed mounting holes make for clean-looking installations.
– Wide gap models are available.
Standard Features
– Sealed switch assembly.
– Wide gap distance allows for fast set-up, easy installation.
– Mounting screws included.
– Dimensions: 51 x 9.5 x 9.5 mm.
Specifications
Loop type | Closed |
Electrical configuration | Normally open |
Lead type | 1 ft. #22 wire |
Mounting holes | On 1.625 inch (41 mm) centers |
Gap distance | Up to 5/8 inch |
Voltage | 100VAC/DC max |
Current | 0.5A max |
Power | 7.5 W max |
Dimensions | 51 x 9.5 x 9.5 mm |
– Sản xuất tại USA/ MEXICO.
– Bảo hành: 12 tháng.
