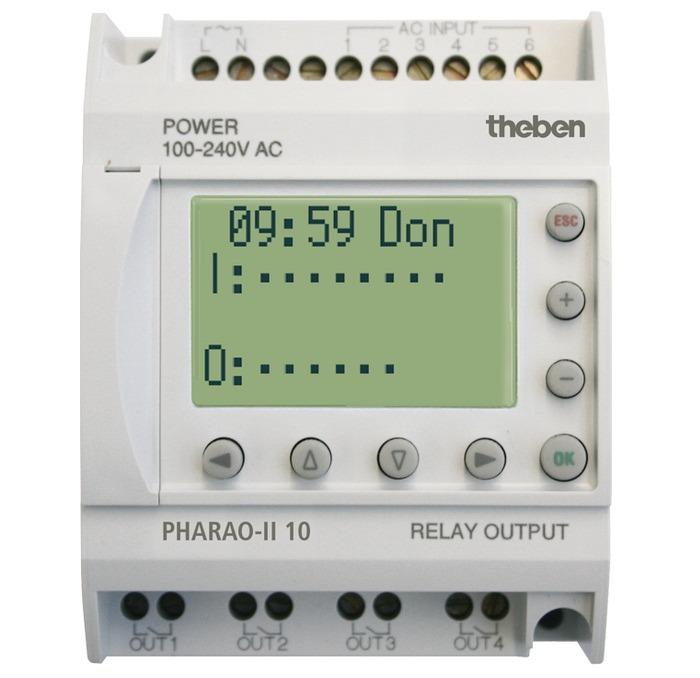

Controller THEBEN PHARAO-II 10 (AC)
- Small control unit for house automation and industry.
- Operating voltage 100-240 VAC.
- 6 digital inputs, e.g. for keys, brightness and temperature switches.
- 4 relay outputs.
- Programming directly on device via eight buttons without interface cable.
- Display back light with operator guidance in clear text.
- Input and output switching status display.
- Lifespan of relay contacts is 100,000 switching cycles at nominal current.
- Assignment of programmed functions on front keys.
- Internal EEPROM memory for max. 200 function blocks (5,000 bytes).
- Optional plug-in EEPROM for program transfer or dual programming of internal and plugged-in EEPROM.
- 3-level password protection.
- Realtime year clock with 1,000 switching times.
- Graphical programming software for Windows 95/98/NT/2000/ME/XP with detailed online Help documentation.
- Remote control/remote monitoring possible via modem/GSM modem.
- Transmission of SMS, email or fax.
Specifications
| Model | PHARAO-II 10 (AC) |
| Operating voltage | 100 – 240 VAC |
| Frequency | 50 – 60 Hz |
| Number of inputs | 6 |
| Number of outputs | 4 |
| Stand-by consumption | 1,2 W |
| Width | 4 modules |
| Installation type | DIN rail |
| Type of connection | NO Contact |
| Switching capacity | 8 A (at 250 V AC, cos φ = 1), 373 VA (at 250 V AC, inductive load) |
| Power reserve | 20 days |
| Time accuracy at 25 °C | ≤ ± 5s/day (quartz) |
| Input frequency | 5Hz |
| Suitable for SELV | No |
| Ambient temperature | -25°C … +55°C |
| Stock temperature | -30°C … +70°C |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
