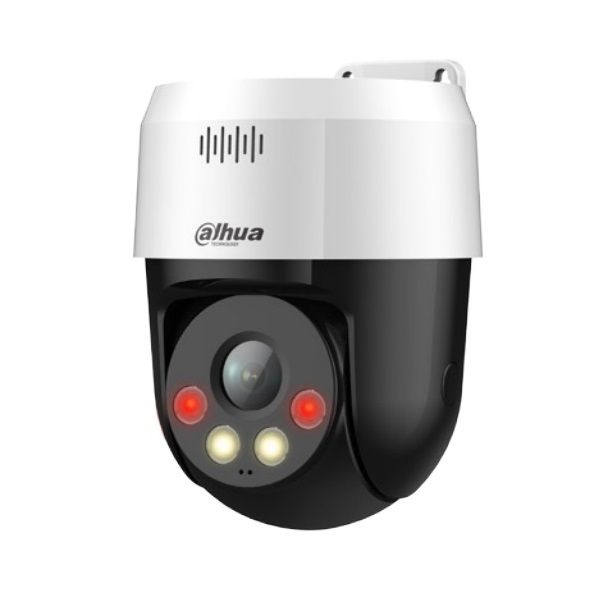

Camera IP Speed Dome hồng ngoại 5.0 Megapixel DAHUA DH-SD2A500NB-GNY-A-PV
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: H.264+; H.265+; H.265; H.264; H.264H; H.264B; MJPEG.
- Ống kính cố định 4mm, góc nhìn 80.4°.
- Tầm quan sát hồng ngoại/LED: 30 mét.
- Hỗ trợ 4 chế độ ánh sáng ban đêm: Có màu (Full Color), Hồng ngoại, Thông minh và Tắt.
- Hỗ trợ các tính năng camera: Chống ngược sáng DWDR, chế độ ngày đêm (ICR), chống ngược sáng (BLC), chống nhiễu (3DNR).
- Hỗ trợ hàng rào ảo, khu vực cấm (IVS), Human detection, SMD 3.0
- Thiết lập điểm preset, gọi điểm preset nhanh.
- Chức năng theo dõi đối tượng xâm nhập.
- Hỗ trợ đàm thoại hai chiều.
- Hỗ trợ còi hú và đèn chớp báo động (âm báo tùy chỉnh).
- Hỗ trợ khe cắm thẻ nhớ Micro SD 256GB.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chuẩn tương thích ONVIF.
- Điện áp: 12 VDC/1.5 A ± 10% PoE (802.3af).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Pixel | 5MP |
| Max. Resolution | 2560 (H) × 1920(V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number | 2 (IR light); 2 (warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Iris Control | Fixed |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to +80° |
| Manual Control Speed | Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Intelligence | |
| SMD | SMD3.0 |
| Active Deterrence | |
| Light Warning | Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10. |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) |
| Streaming Capability | 2 streams |
| Resolution | 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 5M/4M/3M/1080p/1.3M/720p@ (1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Electronic |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; AAC |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NT P;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
| Interoperability | RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (256 GB); FTP |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; preset; recording; audio; sending email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power Consumption | Basic: 3.5 W; Max: 9 W (illuminator) |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Protection | Waterproof and Dustproof; TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 140.5 mm × Φ111.0 mm |
| Net Weight | 0.5kg |
- Bảo hành: 24 tháng.
