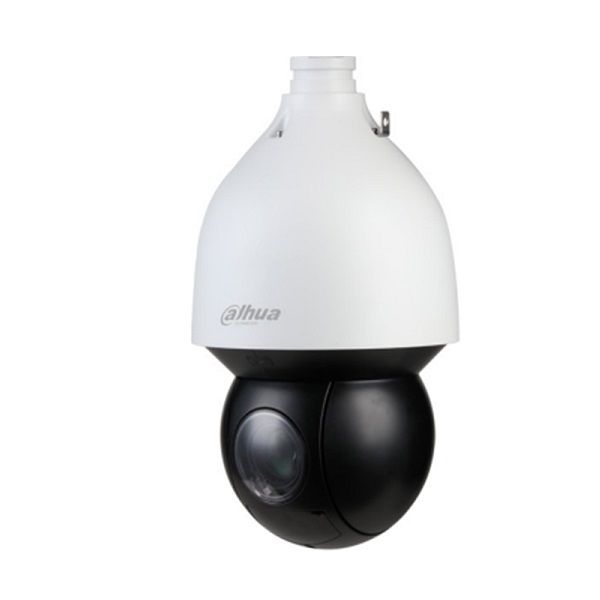

Camera IP Speed Dome hồng ngoại 4.0 Megapixel DAHUA DH-SD5A432GB-HNR
- DAHUA DH-SD5A432GB-HNR là dòng camera IP Speed Dome hồng ngoại hỗ trợ tính năng thông minh AI.
- Cảm biến hình ảnh: STARVIS CMOS kích thước 1/2.8 inch.
- Độ phân giải: 4.0 Megapixel.
- Chuẩn nén hình ảnh: Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream 1).
- Ống kính: 4.8mm - 154mm.
- Độ nhạy sáng: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on).
- Zoom quang: 32x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 150 mét.
- Tích hợp 1 audio in, 1 audio out.
- Hỗ trợ báo động 2 kênh vào và 1 kênh ra.
- Hỗ trợ các tính năng: Chống ngược sáng thực WDR (120dB), chế độ ngày đêm (ICR), tự động cân bằng trắng (AWB), tự động bù sáng (AGC), chống ngược sáng (BLC, HLC), chống nhiễu (3D-DNR), tự động lấy nét (PFA).
- Hỗ trợ các tính năng thông minh AI như: SMD Plus - Phân biệt người và xe, hỗ trợ phát hiện khuôn mặt, Auto Tracking, phát hiện tụ tập, lãng vãng, phát hiện đỗ xe trái phép, phát hiện vật thể bị bỏ rơi, bị lấy mất...
- Hỗ trợ thẻ nhớ 512GB.
- Hỗ trợ PoE+ (802.3at).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8-inch CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 4.8 mm - 154 mm |
| Max. Aperture | F1.6 - F4.0 |
| Field of View | H: 55.8° - 2.4°; V: 31.9° - 1.3°; D: 63.7° - 2.7° |
| Optical Zoom | 32× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.8 m - 5.0 m (2.62 ft–16.40 ft) |
| Iris Control | Auto; manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Auto Tracking | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. |
| SMD | Yes |
| Video | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Interoperability | ONVIF (Profile S&G&T); CGI |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Port | |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply | 24 VDC, 2.5 A (± 25%) PoE +(802.3at) |
| Power Consumption | Basic: 13 W Max.: 22 W (illuminator + PTZ working) |
| Environment | |
| Operating Temperature | -40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Dimensions | 332 mm × Φ190 mm |
| Net Weight | 4.7kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
