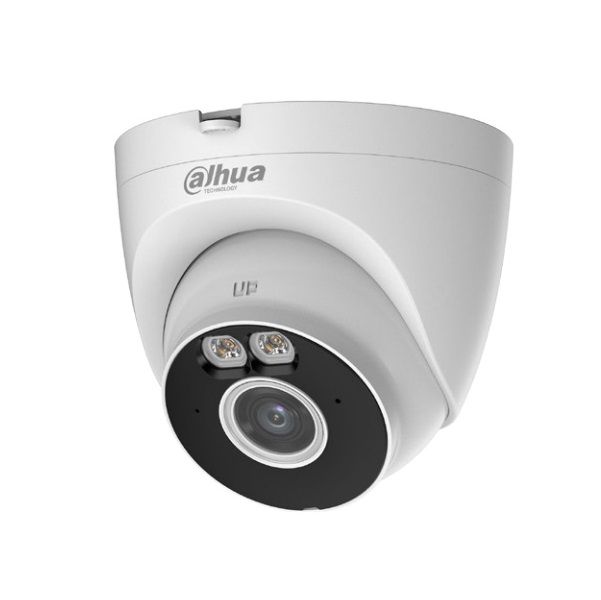

Camera IP Dome Full-Color không dây 4.0 Megapixel DAHUA DH-T4A-LED
- Cảm biến hình ảnh: 1/3 inch CMOS image sensor.
- Độ phân giải: 4.0 megapixel.
- Chuẩn nén hình ảnh: H.264B; H.264; H.264H; H.265.
- Hỗ trợ kết nối Wifi.
- Hỗ trợ các tính năng camera: Chống ngược sáng DWDR, bù sáng (BLC), HLC, chống nhiễu (3D-DNR).
- Tích hợp đèn ánh sáng ấm, và khoảng cách chiếu sáng tối đa là 30m.
- Hỗ trợ phát hiện chuyển động, phát hiện con người.
- Tích hợp Mic.
- Hỗ trợ thẻ nhớ Micro SD 256GB.
- Nhiệt độ hoạt động: -40°C ~ +60°C.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/3 inch CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V |
| ROM | 16 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6(B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 98°; V: 55°; D: 115° 3.6 mm: H: 78°; V: 41°; D: 94° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1 m (3.28 ft) 3.6 mm: 1.7 m (5.58 ft) |
| Intelligence | |
| Human Detection | Support the classification and accurate detection of human |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps); sub stream: 640 × 480@(1–25/30 fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps ~ 4096kbps H.265: 12kbps ~ 4096kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; abnormal audio input; intensity change; motion detection; SMD(human) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G |
| SDK and API | Yes |
| Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2.2 W (12 VDC); Max. (H.265+warm light intensity): 6.2 W (12 VDC) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidit | ≤95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Inner core: Metal + Plastic Cover: Plastic |
| Product Dimensions | Φ109.9 mm × 102.2 mm |
| Net Weight | 323 g |
- Bảo hành: 24 tháng.
