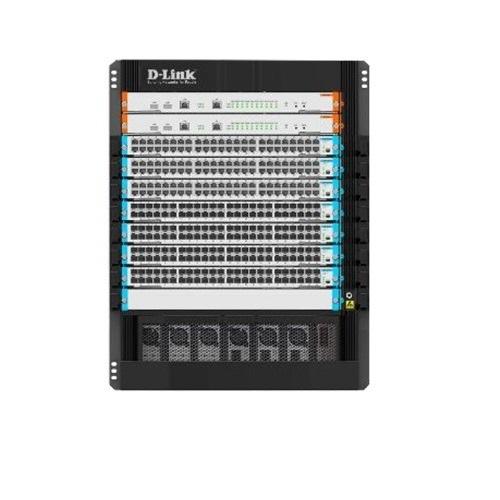

Data Center Chassis Switch D-Link DES-9510
- Switching capacity: 7.68 Tbps
- Packet Forwarding Rate: 5714 Mpps
- Total number of slots: 14
- Number of MCU slots: 2
- Number of SFU slots: 4
- Service card slot number: 8
- Characteristics of Data Centers supporting VSS technology
- Supports VLAN: 4K VLAN entries, GVRP, 1: 1 and N: 1 VLAN Mapping, Basic QinQ and selective QinQ
- Private VLAN
- Supports STP: 1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU protection, root protection and ring protection
- Supports Multicast technology: IGMP v1 / v2 / v3, IGMP Snooping, IGMP Fast Leave, Multicast group policy and multicast number limit, Multicast traffic cross VLAN duplication, PIM-SM and PIM-DM
Specifications
| Model | DES-9510 |
| Switching Capacity | 7.68Tbps |
| Packet forwarding rate | 5714Mpps |
| Number of Slots | 14 |
| MPU slots | 2 |
| MSU Slots | 2 |
| Service card slots | 8 |
| Data Center Characteristics | VSS |
| MAC | Static configuration and dynamically learning of MAC address Check and delete MAC address Configuring of MAC address aging time Limit on MAC address learning number MAC address filtering function Black-hole MAC items |
| VLAN | 4K VLAN entries GVRP 1:1 and N:1 VLAN Mapping Basic QinQ and selective QinQ Private VLAN |
| STP | 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) BPDU protection, root protection and ring protection |
| Multicast | IGMP v1/v2/v3 IGMP Snooping IGMP Fast Leave Multicast group policy and multicast number limit Multicast traffic cross VLAN duplication PIM-SM and PIM-DM |
| IPv4 | Static routing, RIP v1/v2, OSPF and BGP Policy routing. Load balance through equal-cost routing Graceful Restart of OSPF and BGP BFD for OSPF and BGP |
| IPv6 | ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Support Path MTU Discovery MLD and MLD Snooping IPv6 static routing, RIPng, OSPFv3 and BGP4+ Manual tunnel, ISATAP tunnel and 6-to-4 tunnel |
| MPLS VPN | LDP protocol P/PE of MPLS VPN MPLS Traffic Engineering (TE) MPLS Operations, Administration, and Maintenance (OAM) |
| QoS | Traffic classification of each field of L2/L3/L4 protocol headers CAR traffic control 802.1P/DSCP priority remark Multiple queuing algorithms such as SP, WRR or SP+WRR Tail-Drop, WRED Traffic supervision and traffic shaping |
| Security features | Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet Port isolation Port security, IP+MAC+port binding DHCP Snooping, DHCP Option 82 IEEE 802.1x certification Radius and Tacacs+ uRPF Command line authority control based on user levels |
| Reliability | Dual Master Control Redundancy (except S9503) Power 1+1 redundancy Master control, service card hot swap and service automatic recovery Static LACP link aggregation and cross service card link aggregation Ring network protection including EAPS VRRP Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731 GR for OSPF and BGP BFD for OSPF and BGP |
| Management and maintenance | Console, Telnet and SSH SNMP v1/v2/v3 Upload and download of TFTP files Remote Network Monitoring (RMON) Statistics analysis of sFLOW, Netflow |
| Value-added services | POE function |
| Green and energy saving | IEEE 802.3az energy-efficient Ethernet |
| Power Supply | AC: 100V-240V, 50Hz±10% DC: -48V |
| Dimension (W*H*D) | 482×564×620 mm, 14U |
- Bảo hành: 36 tháng.
