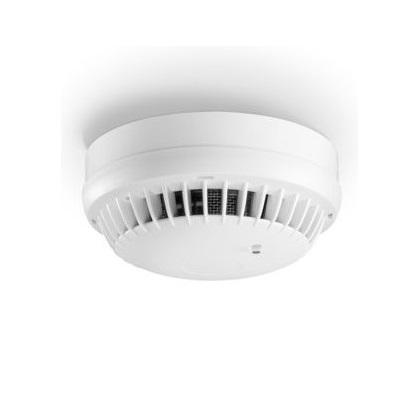

Đầu dò báo khói địa chỉ DETECTOMAT PL-3200-O
- Pollution detection of the smoke measurement chamber by an additional optical path.
- Detector sensitivities automatically adapted and programmable.
- Fault monitoring of the measurement chamber signal and Loop 3000 electronics.
- Periodic sensor test.
- Automatic and manual addressing with Loop 3000.
- Alarm output to control parallel indicator.
- Functions completely integrated via Loop 3000 protocol.
- Presence and absence switching with selectable sensitivities.
- Storage of last maintenance date.
- Multicolour LED for alarm (red) and fault (yellow).
- Delivery including protective cover for installation phase.
Thông số kỹ thuật
| Model | PL-3200-O |
| Supply Voltage | 15 V to 32 V DC on 2-wire bus (max. 34 V DC) |
| Quiescent Current | 280 µA |
| Alarm Current | 5 mA |
| Output | OC: max. 10 mA for parallel indicator or buzzer |
| Ambient Temperature | -10°C to +60°C |
| Humidity | max. 95% |
| Protection class | IP 40 |
| Weight | appr. 80 g |
| Material | ABS |
| Colour | Housing white (similar to RAL 9003) |
| Dimensions (H x D) | appr. 44 mm x 97 mm (with base) |
| Response sensitivity | Adjustable in 5 sensitivity levels |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
