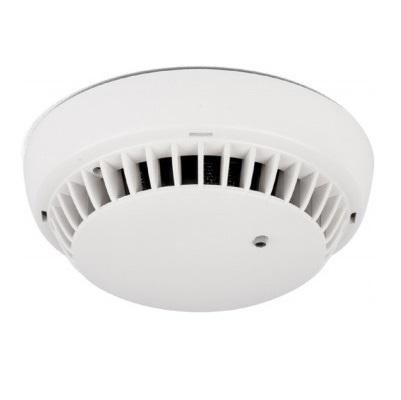

Đầu dò báo khói quang DETECTOMAT CT-3000-O
- Optical smoke detector for conventional systems with an optical measurement method for earliest fire detection and indication according to EN 54-7.
- Integrated professional smoke detection system with highest reliability for a secure alarm verification with 3-fold measurement and intelligent logics.
- Periodic sensor test.
- Alarm output to control parallel indicator.
- LED for alarm (red).
- Integrated locking system for the protection against removal and tamper.
- Delivery including protective cover for installation phase.
Thông số kỹ thuật
| Model | CT-3000-O |
| Supply Voltage | 9V to 33 VDC |
| Quiescent Current | @ 20 VDC (25°C) 30µA |
| Alarm Current | 20 mA |
| Output | OC: max. 50 mA for parallel indicator or buzzer |
| Protection class | IP40 |
| Ambient temperature | -10°C to +60°C |
| Humidity | max. 95% |
| Sensitivity | <0,15 dB/m |
| Dimensions (H x D) | appr. 44 mm x 97 mm (with base) |
| Weight | appr. 80g |
| Material | ABS |
| Colour | Housing white (similar to RAL 9003) |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
