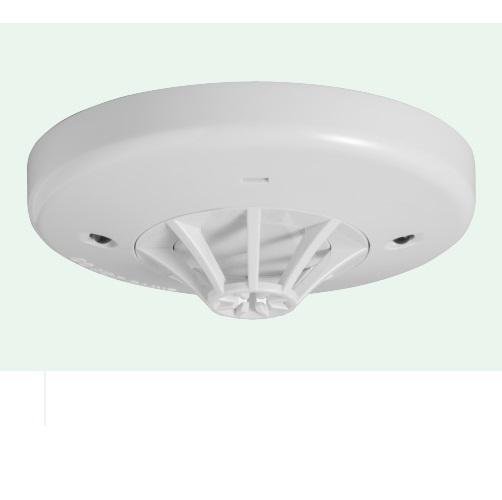

Đầu dò báo nhiệt cố định địa chỉ NOHMI FDLU019-D-X
- The Fixed Temperature Heat Detector (FDLU019-D-X) in an Analog/ Addressable fixed temperature heat detector compatible with any fire alarm control panel of Integlex Multicrest series. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The detector and base (not included) are made of a durable plastic in an eggshell white (off white) to blend in with the ceiling.
Features
- Very Low Profile (30.7mm/1.21-inch only in height).
- 57°C to 85°C (135°F to 185°F) Heat Sensor.
- True Analog Detector.
- Ambient Temperature Listing of 0°C to 66°C (32°F to 150°F).
- Simple and Accurate Address Setting without Mechanical Switches.
- LEDs for 360° Viewing.
Đặc tính kỹ thuật
| Model | FDLU019-D-X |
| Working voltage range | 22.0 to 24.0 V |
| Standby current | 250 μA |
| Alarm indicator | 2 LEDs |
| Alarm indicator current | 1.5 mA D.C |
| Alarm set-point range | 57°C to 79°C (135°F to 174°F) 80°C to 85°C (175°F to 185°F) |
| Installation temperature range | 0°C to 38°C (32°F to 100°F) 0°C to 66°C (32°F to 150°F) |
| Operating relative humidity range | 0% to 93% (Non-condensing) |
| Start-up time | Max. 1 sec. |
| Color | Eggshell White |
| Weight (without base) | 65g (2.29 oz) |
| Dimensions (without base) | Height: 30.7mm (1.21 inch) Diameter: 99mm (4.0 inches) |
- Bảo hành: 12 tháng.
