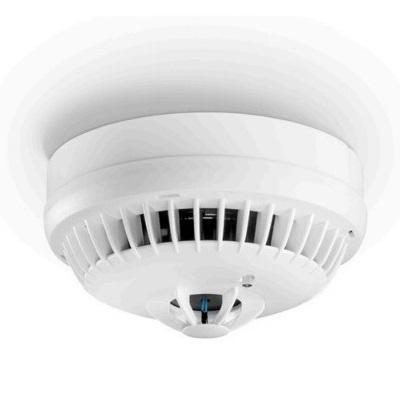

Đầu dò báo nhiệt địa chỉ DETECTOMAT PL-3200-T
- Thermal detector with fixed and rate of rise temperature settings for Loop 3000 with two thermal sensors for earliest fire detection and indication in all environments with difficult ambient conditions, according to EN 54-5.
- Thermal detector, certified according to EN 54-5 in the temperature classes A1R, A1S (A1 and A2R, A2S (A2) and EN 54-17
- Individual use of the thermal measurement according EN 54-5 in the sensitivity levels 2 to 5 as maximum detector (static --> A1S, A2S) or as rate-of-rise detector with maximum threshold (differential and static --> A1R, A2R).
- Individual change of detector class for sensitivity levels 2 to 5 using Easy Check 3000.
- Periodic sensor test.
- Automatic and manual addressing with Loop 3000.
- Alarm output to control parallel indicator.
- Functions completely integrated via Loop 3000 protocol.
- Presence and absence switching with selectable sensitivities.
- Storage of last maintenance date.
- Multicolour LED for alarm (red) and fault (yellow).
- Delivery including protective cover for installation phase.
Thông số kỹ thuật
| Model | PL-3200-T |
| Supply Voltage | 15V to 32VDC on 2-wire bus (max. 34 VDC) |
| Quiescent Current | 280 µA |
| Alarm Current | 5 mA |
| Output | OC: max. 10 mA for parallel indicator or buzzer |
| Protection class | IP 40 |
| Ambient temperature | -10°C to +60°C |
| Humidity | max. 95% |
| Sensitivity | Adjustable in 5 sensitivity levels |
| Dimensions (H x D) | appr. 52 mm x 97 mm (with base) |
| Weight | appr. 80 g |
| Material | ABS, Glass |
| Colour | Housing white (similar to RAL 9003) |
| Standards | EN 54-5 |
- Bảo hành: 12 tháng.
