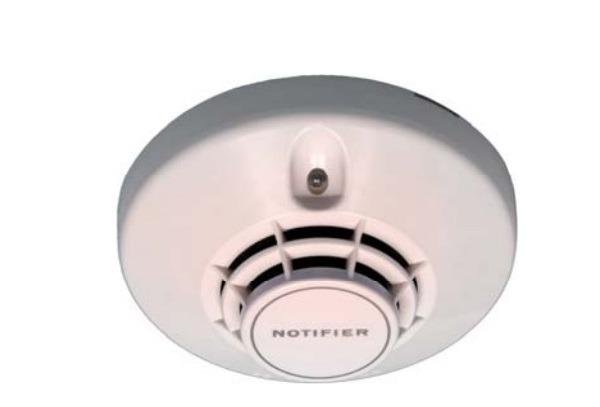

Đầu dò khói kèm đế NOTIFIER B601-E
- B601-E Plug-in Detector Base is used with NOTIFIER® ND700 series Intelligent Detectors. B601-E detector baseis compatible with the ND-751P-E Intelligent Plug-in Photoelectric Smoke Detector heads and ND-751T-E Intelligent Plug-in Thermal Detector heads. This base is intended for use in 2-wire systems, with screw terminals provided for signal connections.
Thông số kỹ thuật
- Voltage Range: 15 ~ 32VDC.
- Standby Current: 735μA, 24VDC at Normal.
- Max. Alarm Current: 1.5mA.
- LED Current: 3.5mA, 24 VDC.
- Operating Temperature: -10ºC ~ 55ºC.
- Relative Humidity: 10% ~ 95%RH, non-condensing.
- Dimensions:
+ Diameter: 102mm;
+ Height: 15mm.
- Bảo hành: 12 tháng.
