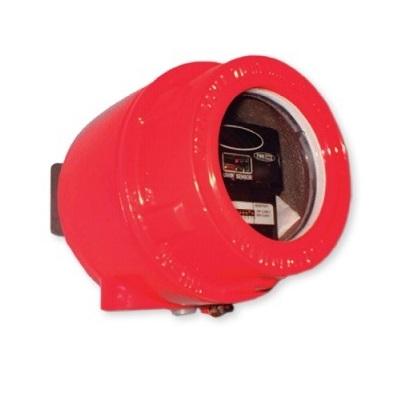

Đầu dò lửa COFEM FDAAT60
- Đầu dò lửa aluminium ATEX phủ sóng 40m nhà ở.
Đặc tính kỹ thuật
| Model | FDAAT60 |
| Supply voltage | 14-30 VDC |
| Alarm current options | 28 mA, RL1 and RL2 energized 20 mA, current loop, RL1 and 2 off 9 mA, RL1 energized |
| Alarm indicator | Red, light-emitting diode (LED) |
| Alarm reset time | 1 second |
| View range | 0.1m² n-heplane at 25m |
| Sensitivity | Class 1 (EN54-10) |
| Field of view | 90 ° cone |
| Spectral response | 185 to 260 nm UV/ IR3 1.0 - 2.7 um |
| Operating temperature/ Humidity | -10ºC to + 55ºC (without ice or condensation)/ 95% RH non-condensing |
| IP rating | IP 66 |
| Cover materials | Copper-free aluminum, red |
| Dimensions | 150 x 146 x 137 mm |
| Weight | 2.5kg |
- Bảo hành: 12 tháng.
