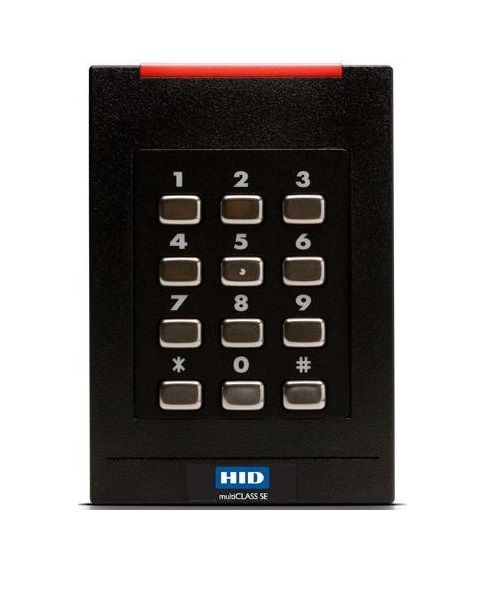

Đầu đọc thẻ HID ICLASS-RPK40-SE
- Contactless multitechnology reader with keypad; reads iClass, Mifare and DESFire credentials, as well as Prox credentials (HID Prox and EM). Extra high security due to implementation of SIO objects, Wiegand output.
- iCLASS Seos: 5 cm
- iCLASS: 12 cm
- MIFARE Classic: 12 cm
- MIFARE DESFire EV1: 5 cm
- Power Supply: 5-16 VDC,
- Operating Temperature: -35º to 65ºC
- Storage Temperature: -55º to 85ºC
- Dimensions: 8.4 x 12.2 x 2.4 cm
Đặc tính kỹ thuật
| Model | ICLASS-RPK40-SE |
| Reader type | Proximity |
| Technology | iCLASS; Mifare; DESFire |
| Power supply voltage | 5 - 16 V DC |
| Consumption | 110 mA |
| Max. reading range | 12 cm |
| LED diode | 6- status (optional) |
| Buzzer | Yes |
| Cover color | Black |
| Protection level | IP55 |
| Compatible card (example) | iClass 2K (SE version) ProxCard II |
| Compatible fob (example) | iClass 2K Key |
| Compatible sticky TAG (example) | iClass 2K Tag |
| Outdoor usage | Yes |
| Operating frequency | 13,56 MHz; 125 kHz |
| Output format | Wiegand |
| Dimensions | 8.4 x 12.2 x 2.4 cm |
- Sản xuất tại Hong Kong.
- Bảo hành: 12 tháng.
