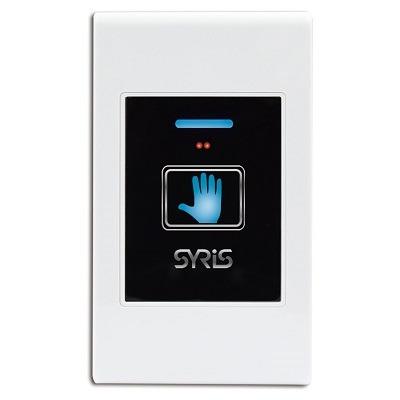

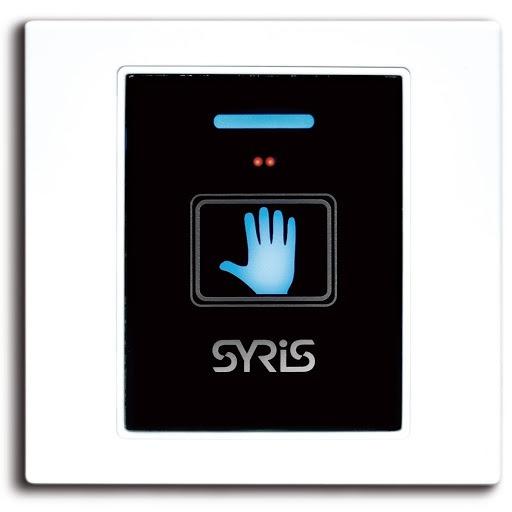

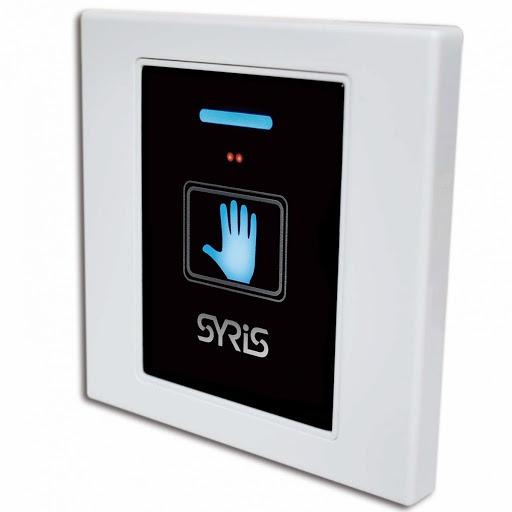

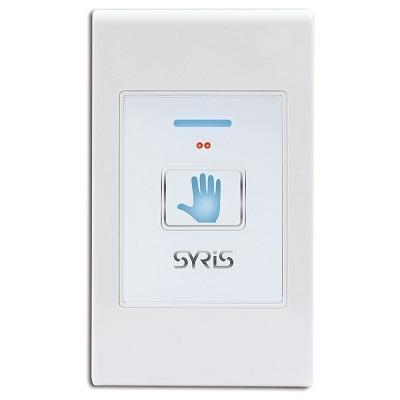

Đầu đọc thẻ SYRIS SYSR86
Features:
• size 86mm x 86mm、ultra-thin design waterproof.
• Access control with Mobile Bluetooth(support remote administartion)
• Open door via Bluetooth and access mode with time zone
• Security for AES encryption
• Hands free switch and touch panel
• Compatible to read multi-type card.
• Support to work with active RFID Tag
• Tricolor status indicator.
• Relay can be connected with Door bell , gallery light .
• Dual interface: RS485 and Wiegand
• Compatible with most of access control system
• Multi-mode access control
| Spec. | 86 Card Reader (SYSR86) | |
| Associated Item | -H1 | -HBX1 |
| Card Frequency | 13.56MHz(Multi-Format) | |
| Support Card | ISO14443A/B/ISO15693 /Mifare/NTAG203/Mifare DESFire | |
| Read Card Range | 1~5 cm | |
| Active Reader | N/A | Yes |
| Baud Rate | 19,200 bps(4,800~230,400 bps) | |
| Read Card Time | 0.1 Sec. | |
| IR Sensor | 1 IR sensor for waving hand,adjustable range 0-10cm | |
| Status Indicator | 3 LED(RGB) | |
| Interface | RS485、Wiegand(Support 26/32/34/35/37/42/66 bit) | |
| ID Setting | 0001~9999 | |
| Digital Input | Up to 3(1 for non-voltage DI+2 for non-voltage DI share same port with Wiegand) | |
| Digital Output | Up to 3(1 for Relay + 2 for Wiegand) | |
| Voice Output | On-board buzzer | |
| Operating Temperature | -10℃~+60℃ | |
| Storage Temperature | -20℃~+70℃ | |
| Power | 8V~28V DC / 0.5W~2W | |
| Size(mm) | 70W x 120H x 11.8D | |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
