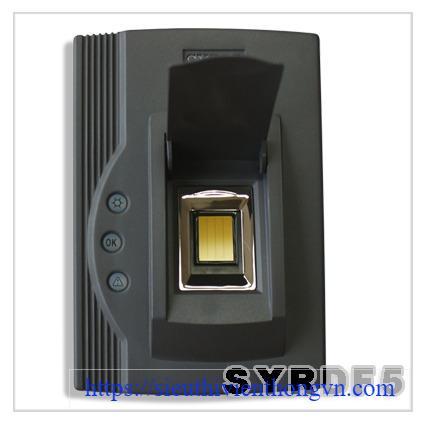

Đầu đọc vân tay SYRIS SYRDF5
Feature:
• Built-in Anti-Tamper protection.
• Communication : Wiegand / RS485.
• Built-in Watchdog to prevent system from halting.
• Built-in Buzzer.
• Access methods : Fingerprint / Card+Fingerprint / Card.
• Fingerprint (9,000 templates) verification.
• Capacitive fingerprint sensor for capturing 2D fingerprint template.
• High accuracy and speed of fingerprint identification.
• The most reliable fingerprint algorithm.
• Fast 1:N matching speed (High performance DSP).
• Low power consumption and fast power-on time.
Specification:
| Transmit Frequency | 125KHZ(EM) / 13.56MHz (Mifare) |
| Number of Fingerprints | 9,000 fingerprints |
| ID | 1-8 (for SYW95A ) or 01-99 (for SYSOFT series) |
| Read Range | 3cm~10cm (Mifare:2cm~8cm) |
| Fingerprint Sensor | Capacitive |
| Communication | RS485 / Wiegand |
| EER(Equal Error Rate) | <0.1% |
| Wiegand Formats | 26 / 34 / 42 bits |
| Buad Rate | 19,200bps (4,800bps ~ 115,200bps) |
| Beep Tone | Built-in Buzzer |
| LED Indicator | 3 LED |
| Anti-Tamper Facility | Built-in |
| Encryption | 256 bit AES(fingerprint data protection) |
| Operating / Storage temperature | -5˚C ~ +55˚C / -10˚C ~ +60˚C |
| Input Voltage | 8V ~ 20V DC / 0.5W ~ 2W |
| Dimensions(mm) | 83W x 121H x 45D |
| Ordering Information | •SYRDF5-S2 : 125KHz, Capacitive sensor, Gray color •SYRDF5-S2M1 : 13.56MHz, Capacitive sensor, Gray color |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
