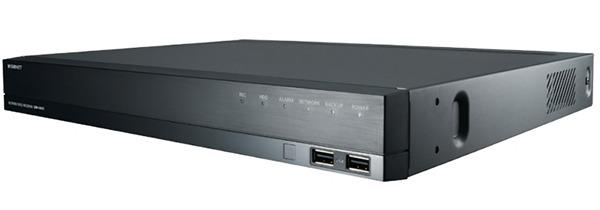

Đầu ghi hình camera IP 16 kênh Hanwha Techwin WISENET QRN-1620S/VAP
- Đầu ghi hình Camera IP 16 kênh.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Plug & play bằng 16 cổng PoE.
- Hỗ trợ 2 ổ cứng SATA dung lượng lưu trữ tối đa 12TB.
- Ghi hình camera qua mạng 128Mbps.
- Tương thích với tín hiệu ngõ ra: HDMI, VGA.
- Hỗ trợ WiseStream.
- Hỗ trợ âm thanh: 2 chiều.
- Ngõ vào/ ngõ ra Audio: 16 kênh.
- Hỗ trợ 2 cổng USB.
- Ethernet: RJ-45(10/100/1000BASE-T) x 1, RJ-45(PoE+) x 16.
- Hỗ trợ dịch vụ P2P (mã QR).
- Hỗ trợ DDNS (Dynamic Domain Name System) tên miền xem qua mạng internet.
- Xem hình ảnh trên nhiều loại điện thoại di động, phần mềm quan sát (iPhone, Androids).
- Nguồn điện ngõ vào: 100~240VAC±10%.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: 370.0 x 44.0 x 320 mm.
- Trọng lượng: 2.79kg.
- Màu sắc/ chất liệu: Đen/ kim loại.
Đặc tính kỹ thuật
| Model | QRN-1620S/VAP | |
| Display | ||
| Network camera | Inputs | Max. 16CH |
| Resolution | 8MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | [Dual Display] |
| HDMI: 3840 x 2160, 1920x1080, 1280x720 | ||
| VGA: 1920x1080, 1280x720 | ||
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps),,720p(480fps), D1(480fps) | |
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (16CH simultaneously) |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 16CH (Local Monitor) | |
| 8Ch (CMS, Wisenet Mobile) | ||
| Fisheye Dewarping | WEB / CMS/ Mobile | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea (Max 12TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI (Webviewer only) |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Audio | Input/Output | 16CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | HTTPS(SSL) Login Authentication | |
| Digest Login Authentication | ||
| IP Address Filtering | ||
| User access log | ||
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | ||
| Device Certificate(Hanwha Techwin Root CA) | ||
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
| Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | ||
| Functions | ||
| PTZ | Control | Via GUI, Webviewer |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search (3), Live Unicast (10) | |
| Redundancy | ARB | Support |
| Easy configuration | Configuration), P2P (QR code) | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| Audio | Out (1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 | |
| RJ-45(PoE+) x 16 | ||
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA (Front 2) | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, IR remocon, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C (+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 100~240 VAC±10% | |
| Power Consumption | Max. 158.2W(2HDDs, PoE on) | |
| Max. 34.6W(2HDDs, PoE off) | ||
| PoE Budget | Max. 130W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension | 370 x 44 x 320mm | |
| Weight | 2.79kg | |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
