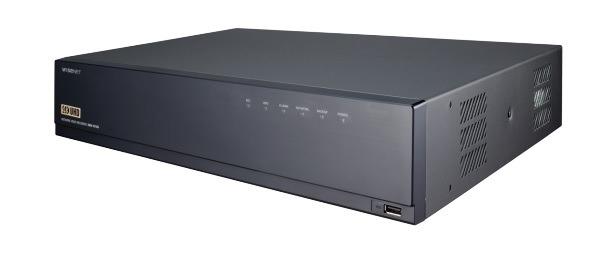

Đầu ghi hình camera IP 16 kênh Hanwha Techwin WISENET XRN-1610S/VAP
- Đầu ghi hình camera IP 16 kênh.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải: 12 Megapixel.
- Hỗ trợ 4 ổ cứng SATA dung lượng lưu trữ tối đa 24TB.
- Hỗ trợ 1 ổ cứng eSATA.
- Hỗ trợ WiseStream.
- Ghi hình camera qua mạng lên đến 180Mbps.
- Hỗ trợ âm thanh: 2 chiều.
- Hỗ trợ giao thức: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client).
- Đa ngôn ngữ.
- Cổng kết nối: RJ45.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện cung cấp: 100 ~ 240VAC.
- Kích thước: 440 x 88 x 384.8mm.
- Trọng lượng: 5.1kg.
Đặc tính kỹ thuật
| Inputs | Up to 16 CH |
| Resolution | CIF ~ 12MP |
| Protocols | Samsung, ONVIF |
| Local Display | 1x HDMI, 1x VGA dual monitor |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence |
| Performance | [Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), 2MP (480fps), 720p (480fps), D1 (480fps). [Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps) |
| Embedded | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | 180Mbps |
| Resolution | CIF ~ 12MP |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre/ Post) |
| Event Trigger | Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), |
| VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, | |
| Face detection, Audio Detection), Defocus camera event | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Playback Bandwidth | 32Mbps (16 CH simultaneously |
| Performance | Max. 4 users (Local 1, Remote 3) |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS, ANPR) |
| Simultaneous Playback | Max. 16CH (Local monitor, CMS) |
| Resolution | CIF ~ 12MP |
| Fish-eye Dewarping | Processed on Web / CMS |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down |
| External | iSCSI storage (Max. 384TB), Promise VessRaid R2600 |
| Internal HDD | 0TB ~ 6TB |
| Internal / External | 4 SATA (Max. 24TB) / 1 e-SATA, iSCSI (Max. 384TB, PROMISE VESSRAID R2600) |
| File Backup (Via Web) | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Max. 16CH play, Date-time/title display |
| Input / Output | 8 / 4 (NO/NC selectable) |
| Input | 16CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way (Pass-through between camera and SSM) |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | iPOLiS DDNS |
| Transmission Bandwidth | Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on) |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| OS | Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) |
| Web Browser | Plug-in free Webviewer |
| - Supported Browser : Google Chrome 47, MS Edge 20 | |
| - WMF : 1CH live (800 x 600), Setup | |
| Plug-in Webviewer | |
| - Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only | |
| Viewer | Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| Software | CMS Support: SDK / CGI (SUNAPI) |
| Camera Setup | Register: PnP mode, Manual mode |
| Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality | |
| Camera event setup - MD, VA: Tampering, Enter / Exit | |
| Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection) | |
| Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS | |
| WDR, D&N, SSNR, Shutter, SSDR, DIS) | |
| Fisheye dewarping, Hallway view setup, Camera webpage | |
| PoE (PoE+) | Monitor PoE/PoE+ power consumption, On/Off control for each PoE/ |
| PoE+ camera, Remote reset for each PoE/PoE+ camera | |
| Time Sync. | NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time) |
| ARB (Auto Recovery Backup) | Yes |
| PTZ | Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets |
| Smart Phone | OS: Android, iOS |
| Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control: Live (16CH): Multi-profile support, Playback (1CH, Max 2MP). | |
| Max. Remote Users: Search 3 / Live unicast 10 | |
| System Control | Mouse, Web, SPC-2000 (USB) |
| Indicator | Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea |
| Record status LED 1ea, Network action LED 1ea, Backup LED 1ea | |
| USB | 2ea (Front 1ea / Rear 1ea) |
| HDMI | Main: 1ea (Both support Live / PB / Setup) |
| Support up to 4K (3840 x 2160, Single monitor mode) | |
| VGA | Sub: 1ea (Support live screen up to 16 div. mode) |
| Audio/ Serial | Out 1ea (RCA, Line) / 1ea for UPS (Plan to support as project basis) |
| Ethernet | 16ea (PoE (PoE+), 100Mbps), 2ea (LAN/WAN, 1Gbps) - LAN: Downlink to camera / PoE (PoE+) Hub - WAN: Uplink to CMS |
| Alarm | In 8ea (Terminal block) / Out 4ea (Terminal block) |
| Reset / Power Cord | Yes (Factory reset, Alarm reset) / Included |
| Log List | Max. 20,000 (System log, Event log each) |
| Input Voltage / Current | 100 ~ 240VAC |
| Power Consumption | Max. 271.9W (4 HDDs, PoE/PoE+ on), Max. 51.9W (4 HDDs, PoE/PoE+ off) PoE/PoE+ Budget: Max. 220W |
| Color / Material | Black / Metal |
| Dimensions | 440.0 x 88.0 x 384.8mm |
| Weight | 5.1kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 36 tháng.
