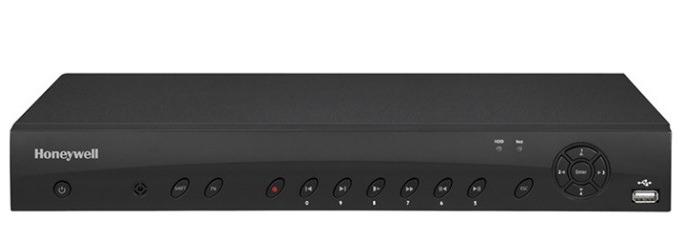

Đầu ghi hình camera IP 16 kênh HONEYWELL HEN16103
- H.265/H.264 codec decoding
- HDMI/ VGA simultaneous video output
- UL listed
- Supports up to 4 alarm input channels and 2 alarm relay output channels
- Supports sending notifications through email, FTP, and/or HTTP
- Supports recording a video clip of events for distribution
- Supports uploading still images at the time of the event through email and/or FTP
- Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering
- Maximum incoming bandwidth of 200 Mbps
- Supports visual or auditory notifications (a flashing light, bell, or siren)
- Supports Smart Face detection search
- Integration with Maxpro Cloud and the IView Now
Đặc tính kỹ thuật
| Model | HEN16103 |
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 16 Channels IP |
| Audio | |
| Audio Input/Output | 1 Channel Input/1 Channel Output, RCA |
| Two-way Communication | Supported |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Display Split | 1/4/8/9/16 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8 MP (3840 × 2160); 6 MP (3072×2048); 5 MP (2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048 × 1520); 1080p (1920 ×1080); 720p (1280 × 720); D1 (704 ×576/704 ×480); CIF (352 × 288/ 352 × 240) |
| Frame rate | 1–15 fps (8 MP); 1–25/30 fps (rest of the resolutions) for each channel |
| Record bit rate | 200Mbps |
| Recording mode | Schedule (Regular/Continuous, Motion Detection, Alarm); Manual; Stop |
| Recording interval | 1 to 120 minutes (default 60 min) |
| Pre-event recording interval | 1 to 30 seconds |
| Post-event recording interval | 10 to 300 seconds |
| Video Detection and Alarms | |
| Trigger Events | Recording; PTZ; Tour; Alarm; Video Push; Email; FTP; Snapshot; Buzzer, Screen Tips |
| Video Detection | Motion Detection – MD Zones: 396 (22 × 18); Video Loss; Tampering |
| Alarm Input/ Relay Output | 4/2 channels |
| Playback and Backup | |
| Sync Playback | 1/4/8 |
| Decoding | 2-ch in 8 MP@15fps or 4-ch in 1080P@30fps |
| Search Mode | Time/Date; Alarm; Motion Detection (MD); Exact Search (accurate to a second); Smart Search |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup selection; Digital Zoom |
| Backup Mode Compatibility | USB Device; Network |
| Network | |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/Ipv6, UpnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P |
| Ethernet | 1 RJ-45 port (10/100/1000 Mbps) |
| PoE | 16 ports (802.3af/at) |
| Max. Number of Users | 128 Users |
| Network throughput | 200Mbps |
| Smart Phone Compatibility | iPhone; iPad; Android |
| Auxiliary Interface | |
| USB | 2 (1 USB3.0; 1 USB2.0) |
| RS232 | 1 port (for P0S communications) |
| Others | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power consumption | |
| PoE | Max 25.5W for single port, 130W in total |
| Dimensions | 1U, 375×327.5×53 mm |
| Weight | 2.7kg (without HDD) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
