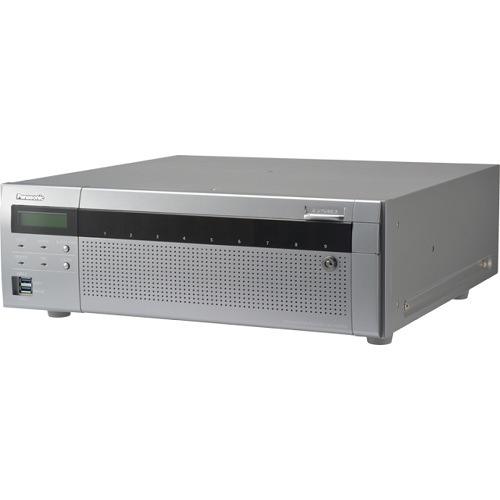

Đầu ghi hình camera IP 16 kênh PANASONIC WJ-NX300K/G
- WJ-NX300K/G là đầu ghi hình camera IP 16 lênh, cho phép mở rộng lên đến 32 kênh (cài thêm 02 gói mở rộng WJ-NXE30W).
- Chuẩn nén hình: H.265, H.264, JPEG.
- Giảm thiểu tối đa không gian lưu trữ với công nghệ nén H.265 và Smart Coding.
- Tương thích với tín hiệu ngõ ra: 2 ngõ chuẩn HDMI (4K/FHD), 1 ngõ chuẩn BNC.
- Hỗ trợ độ phân giải Full HD1080 và 4K cho ngõ ra hình ảnh.
- Hỗ trợ 4 khe ổ cứng SATA, với dung lượng 6TB cho mỗi ổ.
- Cho phép mở rộng thêm đến 22 HDD với bộ lưu trữ lắp thêm (WJ-HXE400/G).
- Quản lý điện năng tiêu thụ cho HDD, giúp tăng tuổi thọ HDD.
- Phân quyền với 3 cấp độ người dùng.
- Nguồn điện: 220V - 240V AC, 50Hz/60Hz.
Đặc tính kỹ thuật
| Model | WJ-NX300K/G |
| Supported Camera | |
| Compatible vendor | Panasonic i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
| Supported Image Format | H.265(HEVC), H.264, JPEG |
| Supported Image Resolution (Depending on the camera) | - Aspect ratio [4 : 3] 4000x3000, 2560x1920, 2048x1536, 1280x960, 800x600, 640x480 - Aspect ratio [16 : 9] 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x3 - Aspect ratio [1 : 1] 2992x2992, 2816x2816, 2048x2048, 1280x1280 - Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640 |
| Supported Audio Format | G.711 for Onvif, G.726 (ADPCM) 32 kbps, AAC-LC |
| Maximum Number of Cameras | MAX. 32* (Default number of cameras: 16) * Two Additional Camera Kit WJ-NXE30W are necessary |
| Recording | |
| Recording Mode | Event, Schedule, Emergency |
| Pre-alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 4 Mbps. |
| Sub-stream Recording | 64/ 128/ 256/ 384/ 512/ 768kbps |
| Scheduled Recording Mode | 16 programs, 6 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera | Up to 60 fps (Depending on the camera) |
| Main Unit Functions | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638) |
| Multiscreen Mode | [Main monitor] • Control screen 4/ 9/ 16 split screen display • Wide view screen 2/ 3/ 4/ 5/ 6/ 7/ 9/ 12/ 16/ 24/ 32 split screen display, 1 screen sequence, 4/ 9/ 16 split screen sequence [Sub monitor] 1/ 4/ 9/ 16/ 24/ 32 split screen display, 1 screen sequence, 4/ 9/ 16 split screen sequence |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s), Time-saving playback |
| Search Mode | Search criteria: Time date, Playback by designating a timeline, VMD, Thumbnail |
| Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
| Camera Title | Up to 16 Characters |
| Clock Display | Time: 12H/24H, Date: 5 formats |
| Digital Zoom | Live/Play: 1.25x, 1.5x ,1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
| 360 Camera Dewarp | Only 1ch display mode |
| re-encoding | 2 Client |
| SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
| Browser GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Aux, Wiper (for WV-SUD638) |
| Playback Control | REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30s) |
| Search Mode | Search criteria: Time date, Event type, VMD, Camera number |
| Display Mode | 1/4 screen |
| Image Download | File Format: Original Format/MP4 Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately |
| Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
| Camera Title | Up to 16 characters |
| Clock Display | On the browser. Time: 12H/24H, Date: 5 formats |
| Alarm Control | Reset |
| Digital Zoom | Live/Play: 2x, 4x (only for 1-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
| Required PC | CPU: Intel® Core™ i7-860 or faster, RAM: 4 GB or more, VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later |
| Alarm/Event | |
| Alarm Source | 9x Terminal inputs, 32x Camera alarms (Panasonic Alarm Protocol), 128x Command alarms |
| Event Mode | Off/On |
| Alarm Action | Alarm recording, e-mail noti cation, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator |
| Alarm Control | Reset |
| Event log | 1000 |
| Input/Output | |
| Spot Output Connector | 1x 1 V [p-p] / 75 Ω (BNC) NTSC /PAL (selectable in setup menu) |
| Monitor (HDMI) Connector | [Main monitor] HDMI 4K UHD(3840x2160p)/ 30Hz, 4K UHD(3840x2160p)/ 25Hz, 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz |
| [Sub monitor] HDMI 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz | |
| Audio Output Connector | -10dBv, 600Ω, unbalanced ×1 (RCA pin jack) |
| Alarm/Control Terminal | Alarm Alarm input 1 - 9*, Alarm output**, Alarm reset input*, Face matching output*** *Non-voltage make contact input, +3.3 V pull-up Approx. 23 kΩ **Open collector output, 24 V DC, -200 mA max. ***Additional Business Intelligence Kit WJ-NXF02W is necessary. |
| Control Time adjustment input/output*, +5 V output**, Emergency recording input *Non-voltage make contact input, +3.3 V pull-up Approx. 23 kΩ **+5V ±0.5 V 200 mA max. | |
| Error/Warning Network error output*, HDD error/ Recording error output*, Camera error output*, Recorder error output* *Open collector output, 24 V DC, -200 mA max. | |
| Mouse Connection Port | 2 (Front 1, Rear 1) |
| Network Port | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
| USB Storage | USB 3.0/ USB 2.0 memory, USB 3.0/ USB 2.0 connected HDD (except bus powered device) |
| External Storage | 2x WJ-HXE400 |
| Network | |
| Network Interface | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
| Maximum Recording Rate | 256 Mbps or less |
| Maximum Band Width | Total 512 Mbps or less |
| Supported Protocol | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6: ICMPv6 |
| Upon Alarm or Warning | |
| No. of Simultaneous Users | 16 or less |
| User Registration | Up to 32 users |
| User Level | 3 Levels (Programmable) |
| Partitioning | User level - Camera (View & Control, No Access) |
| Security Method | User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS |
| Other Functions | |
| Time Synchronization | Terminal (Master/Slave), NTP (Server/Client) |
| Summer Time | User definable (using menu setup) |
| Remote Monitoring on Smartphone/Tablet | 16 clients or less* *Panasonic Security Viewer v.3.0 or later is required on smartphone/tablet PC |
| HDD | |
| Type | 8.89 cm (3.5 inch) Serial ATA HDD, Up to 4x HDDs can be installed. |
| Maximum Capacity | 22 HDD slots (with 2x WJ-HXE400 Extension Units, 9x HDDs installed in a extension unit) Up to 6 TB will be supported.* *Please check the following URL for the latest information. ( |
| RAID (Hardware RAID)* *8 Additional RAID Kit WJ-NXR30W is necessary | RAID 1, 5, 6 |
| Viewer Software | |
| Playback Control | Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Additional Functions | NX Viewer: Alteration detection, Save as JPEG, Two times zoom, Print, Copy, Aspect ratio switching, sh eye correction, corridor display |
| Supported OS, Language | Language of the software will be English or Japanese |
| General | |
| Safety/ EMC Standard | CE (EN60065, EN55032 ClassB, EN55024), EAC |
| Power Source | 220V - 240VAC 50 Hz/60 Hz |
| Power Consumption | approx. 72 W |
| Ambient Operating Temperature | Main body: +5°C to +45°C (41°F to 113°F) Mouse (provided): +5°C to +40°C (41°F to 104°F) |
| Ambient Operating Humidity | 5% to 90% (without condensation) |
| Maximum Operating Altitude | 2.000 m (6,562 feet) above sea level |
| Dimensions | 420 mm(W)×88 mm(H)×370 mm(D) (From Rack Mount Bracket 350 mm) {16-9/16 inches(W)×3-7/16 inches(H)×14-9/16 inches (D)}(From Rack Mount Bracket (13-13/16-inch)) (excluding rubber feet and projections) |
| Mass (approx.) | When no HDD is installed: 7.0 kg {15.4 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
