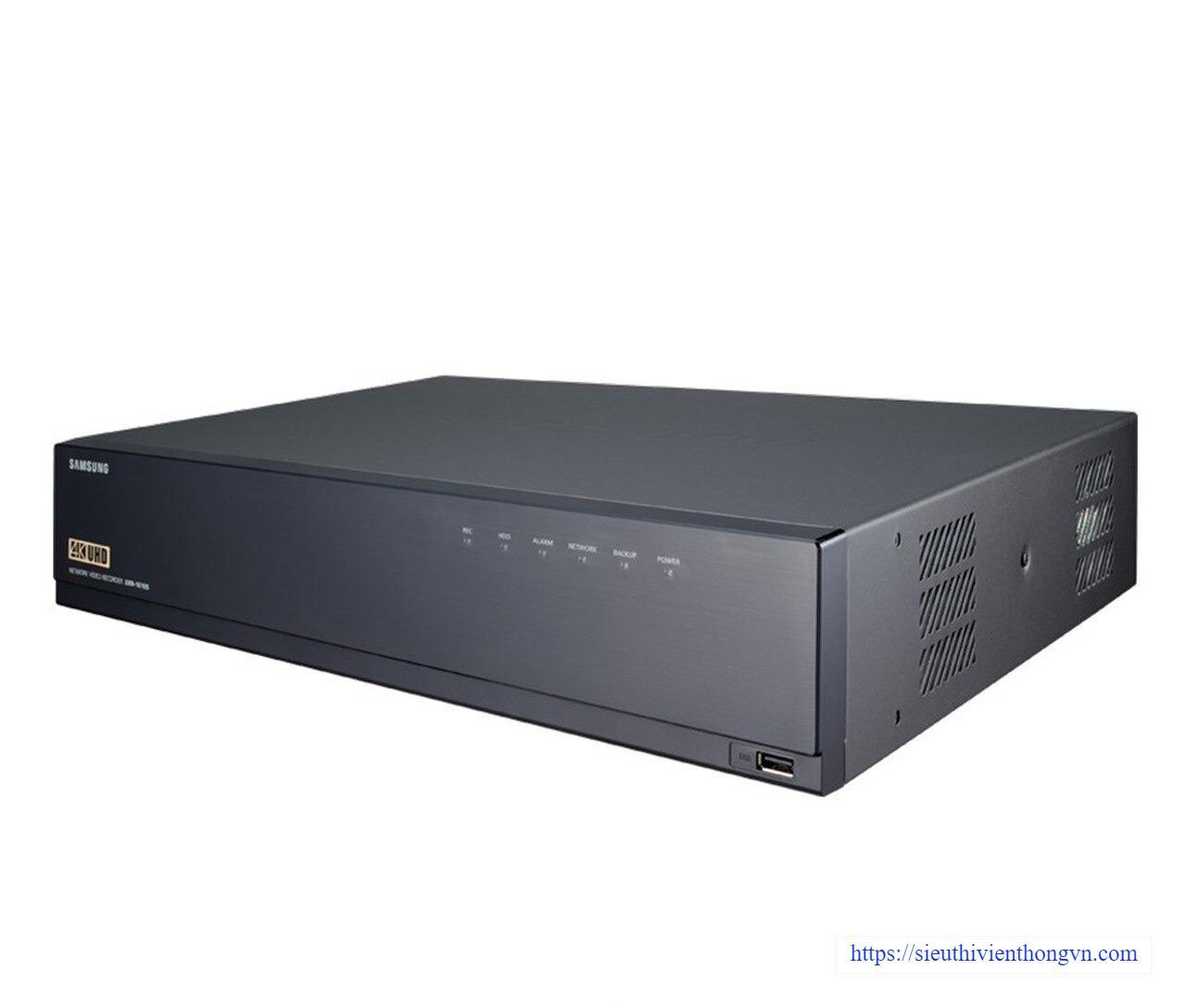

Đầu ghi hình camera IP 32 kênh Hanwha Techwin WISENET XRN-2011A
- Đầu ghi hình camera IP 32 kênh.
- Hỗ trợ độ phân giải CIF ~ 12MP.
- Hỗ trợ 8 ổ cứng SATA dung lượng 6TB mỗi ổ cứng.
- Tốc độ ghi hình camera IP lên đến 256Mbps.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG, WiseStream (H.265, H.264).
- Hỗ trợ tên miền DDNS.
- P2P (QR code).
- Tương tích với tín hiệu ngõ ra: HDMI độ phân giải 4K.
- Hỗ trợ cổng VGA, RS485, USBx2.
- Hỗ trợ RAID 5.
- Hỗ trợ 2 cổng Ethernet (LAN/WAN, 1Gbps), 1 e-SATA.
- Hỗ trợ 32 ngõ vào Audio, 1 ngõ ra Audio.
- SSM, Webviewer, SmartViewer, iPOLiS mobile viewer (Android / iOS).
Đặc tính kỹ thuật
| Model | XRN-2011A |
| Display | |
| Video Inputs | Up to 32CH |
| Resolution | CIF ~ 12MP |
| Local Display | 1x HDMI, 1x VGA dual monitor |
| Protocols | Samsung, ONVIF |
| Multi Screen Display | Local monitor: 1/ 2V/ 3V/ 4/ 6/ 8/ 9/ 1/ 16/ 25/36 Auto sequence Web: 1/ 4/ 9/ 16/ 25/ 36 Auto sequence |
| Performance | |
| Operating System | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | Max. 256Mbps, Max. 100Mbps (RAID 5 mode) |
| Resolution | CIF ~ 12MP |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post) |
| Event Trigger | Alarm input, Video loss, Camera event (Sensor, MD, Video analytics) |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Playback | |
| Playback Bandwidth | 32Mbps (16CH simultaneously) |
| Performance | Max. 4 users (Set 1, Remote 3) |
| Simultaneous Playback | Max. 16CH (Local monitor, Network) |
| Internal Storage | 0TB ~ 6TB / 8 (Hot swap) – Max. 48TB (Non-RAID), Max. 36TB (RAID 5) |
| External Storage | iSCSI storage (Max. 384TB), Promise VessRaid R2600 |
| RAID | RAID 5 (Array size : 4 HDD x 2 array) |
| Audio Communication | 2-way |
| Network | |
| Interface | RJ-45, Gigabit ethernet x 2 |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| Transmission Bandwidth | 512Mbps (iSCSI off), 256Mbps (iSCSI on) |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Interface | |
| HDMI | Main: 1ea (Both support Live / PB / Setup) |
| VGA | Sub: 1ea (Support Live screen up to 16 div. mode) |
| Audio | Out 1ea (RCA, Line) |
| Ethernet | RJ-45 2ea (LAN/WAN, 1Gbps) |
| Alarm | In 8ea (Terminal block) / Out 4ea (Terminal block) |
| USB | 2ea (Front 1, Rear 1) |
| Storage | 1 e-SATA |
| Serial / Reset | RS-232C / Switch 1ea |
| Power Cord | 1ea AC Inlet |
| General | |
| Input Voltage/ Current | 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A |
| Power Consumption | Max. 99W |
| Operating Temperature | 0°C~+40°C |
| Dimensions (WxHxD) | 440.0 x 88.0 x 384.8mm |
| Weight | 5.43Kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
