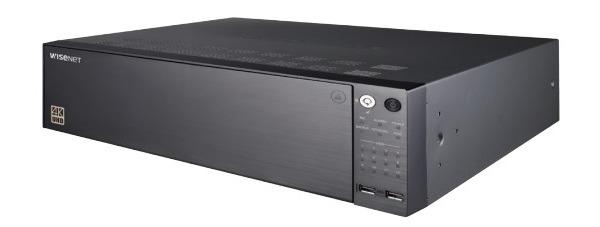

Đầu ghi hình camera IP 64 kênh Hanwha Techwin WISENET PRN-4011/KAP
-Đầu ghi hình camera IP 64 kênh.
-Độ phân giải: CIF ~ 12MP.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Ghi hình camera qua mạng lên đến tối đa 400Mbps.
-Hỗ trợ WiseStream.
-Hỗ trợ 12 ổ cứng SATA dung lượng lưu trữ 96TB.
-Hỗ trợ 4K video out on HDMI monitor.
-Hỗ trợ Dual monitor video out.
-Cổng kết nối: RJ45.
-4 kênh báo động ngõ vào, 4 kênh báo động ngõ ra.
-Hỗ trợ giao thức: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client).
-Đa ngôn ngữ.
-Nguồn điện cung cấp: 100 ~ 240VAC.
-Công suất tiêu thụ: Tối đa 250W.
-Kích thước: 436 x 132 x 450mm.
-Trọng lượng: 11kg.
Đặc tính kỹ thuật
| Inputs | Up to 64CH |
| Resolution | CIF ~ 12MP |
| Protocols | Samsung, ONVIF |
| Local Display | 1x HDMI, 1x VGA dual monitor |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence |
| Performance | [Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps) |
| Embedded | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | Max. 400Mbps (RAID-5/6) |
| Resolution | CIF ~ 12MP |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post) |
| Event Trigger | Alarm input, Video loss, Camera event (Sensor, MD, Video analytics, Defocus) |
| Playback Bandwidth | 32Mbps (16CH simultaneously |
| Performance | Max. 4 users (Local 1, Remote 3) |
| Mode | Date & Time (Calendar) / Event log list / Text search / ARB search / |
| Smart search (Virtual line w/direction, Enter / Exit) | |
| Simultaneous Playback | Max. 16CH (Local monitor, CMS) |
| Resolution | CIF ~ 12MP |
| Fish-eye Dewarping | WEB / CMS |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down |
| Default Built-In | 0TB ~ 8TB |
| Internal HDD | 12 (Max. 96TB, Non-RAID Mode) |
| External | iSCSI storage(Max. 192TB), Promise VessRaid R2600 |
| RAID | RAID-5/6 (Array Size : 6-HDD x 2 Array) |
| File Backup (Via Web) | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 16CH) play, Date-time/title display |
| Input / Output | 4 / 4 (NO/NC selectable) |
| Input | 64CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way |
| Interface | RJ-45, Gigabit ethernet x 2 |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha security DDNS |
| Transmission Bandwidth | Max. 400Mbps |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| OS | Window 7, 8, 10, Mac OS X (10.8 or above) |
| Web Browser | MS IE, Google Chrome, Mac Safari, Firefox |
| Viewer | Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| Software | CMS Support: SDK / CGI (SUNAPI) |
| Camera Setup | Register: Auto, Manual |
| Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/ | |
| Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), | |
| Fisheye dewarping mode, Hallway view setup, Camera webpage | |
| PTZ | Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets |
| Smart Phone | Support Mode: iPhone, Android |
| Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control: Live (16CH) : Multi-profile support, Playback (1CH) | |
| Max. Remote Users: Search (3) / Live Unicast (10) | |
| Redundancy | Failover / ARB: N + 1 (Include fail-back) / Yes |
| System Control | Mouse, Web, SPC-2000 (Controller) |
| Indicator | LED (Status indicator): HDD Action 12, RAID Status 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1 |
| VGA | Sub: 1ea (Support live screen up to 32 div. mode) |
| HDMI | Main : 1ea (Both support Live / PB / Setup) |
| - Support up to 4K (3840 x 2160, Single monitor mode 64 div | |
| Audio | Out 1ea (RCA, Line) |
| Ethernet | RJ-45 2ea (LAN/WAN, 1Gbps) |
| Alarm | In 4ea, (Terminal block), Alarm reset 1ea |
| Out 4ea (Terminal block) - Relay out1(NO/NC/COM) - Relay out2~4(NO/COM) | |
| USB | 2ea (Front 2) |
| Storage | iSCSI |
| Serial / Reset | RS-232C (UPS Support)/ Switch (1EA) |
| Power Cord | 2ea AC Inlet |
| Log | Log List: Max. 20,000 (System log, Event log each) |
| Electrical | 100 ~ 240 VAC ±10%; 50/60 Hz, 3~1.5A (Dual SMPS) |
| Color / Material | Black/ Metal |
| Dimensions | 436.0 x 132.0 x 450.0mm |
| Weight | 11kg |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
