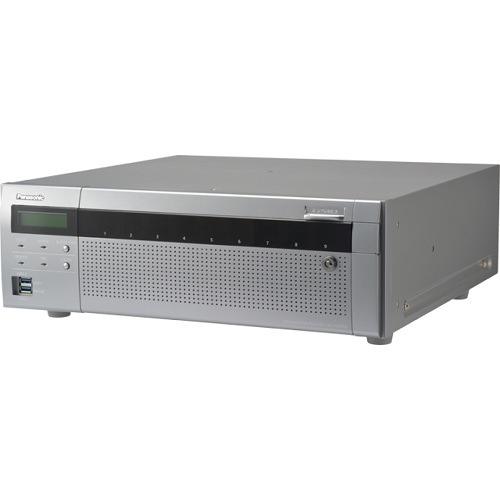

Đầu ghi hình camera IP 64 kênh PANASONIC WJ-NX400K/G
- PANASONIC WJ-NX400K/G là đầu ghi hình camera IP có sẵn 64 kênh, cho phép mở rộng đến 128 kênh (cài đặt thêm các gói mở rộng).
- Ghi hình hiệu suất cao với chuẩn nén hình ảnhH.265 /H.264, độ phân giải đến 4K.
- Cơ chế bảo mật hoàn chỉnh đến máy trạm truy xuất.
- Băng thông tối đa đến 640Mbps.
- Có sẵn 09 khe lắp HDD giao tiếp RAID 1/5/6, cho phép lắp thêm khay ổ cứng mở rộng đến 324TB lưu trữ (WJ-HXE400).
- Nguồn điện: 220V - 240V AC; 50Hz/60Hz.
Các tính năng đặt biệt
- Giao diện người dùng hiện đại có thêm 2 cổng xuất hình chuẩn 4K.
- Đạt tiêu chuẩn FIPS 140-2 cấp độ 1 về Bảo mật & An toàn thông tin của Viện Tiêu chuẩn và Công nghệ quốc gia Mỹ (NIST) ban hành.
- Có sẵn nền tảng bảo mật DigiCert (trước đây là Symantec) (Kích hoạt thông qua license, dành cho các camera quan trọng, cần thiết bảo mật cao).
- Dynamic HDD power management: Quản lý điện năng tiêu thụ nhằm bảo vệ và tăng tuổi thọ ổ cứng.
- Redundant fail-over: Chế độ ghi hình dự phòng rủi ro cho các nội dung quan trọng.
- TURBO-RAID: Phục hồi dữ liệu nhanh chóng (RAID recovery) mà không làm giảm băng thông và hiệu suất của đầu ghi đang hoạt động.
Đặc tính kỹ thuật
| Model | WJ-NX400K/G |
| Supported Camera | |
| Compatible vendor | Panasonic i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
| Supported Image Format | H.265(HEVC), H.264, JPEG |
| Supported Image Resolution (Depending on the camera) | - Aspect ratio [4 : 3] 4.000x3.000, 2.560x1.920, 2.048x1.536, 1.280x960, 800x600, 640x480 - Aspect ratio [16 : 9] 3.840x2.160, 2.560x1.440, 1.920x1.080, 1.280x720, 640x360 - Aspect ratio [1 : 1] 2.992x2.992, 2.816x2.816, 2.048x2.048, 1.280x1.280 - Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640 |
| Supported Audio Format | G.711 for Onvif, G.726 (ADPCM) 32 kbps, AAC-LC |
| Maximum Number of Cameras | MAX. 128 (Default number of cameras: 64) |
| Recording | |
| Recording Mode | Event, Schedule, Emergency |
| Pre-alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 3 Mbps. |
| Sub-stream Recording | 64/ 128/ 256/ 384/ 512/ 768kbps |
| Scheduled Recording Mode | 16 programs, 3 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera | Up to 60 ips (Depending on the camera) |
| Main Unit Functions | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638) |
| Multiscreen Mode | [Main monitor] • Control screen 4/9/16 split screen display • Wide view screen 2/3/4/5/6/7/9/12/16/24/32 split screen display, 1 screen sequence, 4/9/16 split screen sequence |
| [Sub monitor] 1/4/9/16/32 split screen display, 1 screen sequence, 4/9/16 split screen sequence | |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s), Time-saving playback |
| Search Mode | Search criteria: Time date, Playback by designating a timeline, VMD, Thumbnail |
| Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
| Camera Title | Up to 16 Characters |
| Clock Display | Time: 12H/24H, Date: 5 formats |
| Digital Zoom | Live/Play: 1.25x, 1.5x ,1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
| 360 Camera Dewarp | Only 1ch display mode |
| re-encoding | 2 Client *Only when 64 ch mode |
| SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
| Browser GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Aux, Wiper (for WV-SUD638) |
| Playback Control | REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30s) |
| Search Mode | Search criteria: Time date, Event type, VMD, Camera number |
| Display Mode | 1/4 screen |
| Image Download | File Format: Original Format/MP4 Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately |
| Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
| Camera Title | Up to 16 characters |
| Clock Display | On the browser. Time: 12H/24H, Date: 5 formats |
| Alarm Control | Reset |
| Digital Zoom | Live/Play: 2x, 4x (only for 1-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
| Required PC | CPU: Intel® Core™ i7-860 or faster, RAM: 4 GB or more, VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later |
| Alarm/Event | |
| Alarm Source | 32x Terminal inputs, 128x Camera alarms (Panasonic Alarm Protocol), 128x Command alarms |
| Event Mode | Off/On |
| Alarm Action | Alarm recording, e-mail noti cation, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator |
| Alarm Control | Reset |
| Event log | 1000 |
| Input/Output | |
| Spot Output Connector | 1x 1 V [p-p] / 75 Ω (BNC) NTSC /PAL (selectable in setup menu) |
| Monitor (HDMI) Connector | [Main monitor] HDMI 4K UHD(3840x2160p)/ 30Hz, 4K UHD(3840x2160p)/ 25Hz, 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz |
| [Sub monitor] HDMI 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz | |
| Audio Output Connector | -10dBv, 600Ω, 600Ω, unbalanced ×1 (RCA pin jack) |
| Alarm/Control Terminal | Alarm Alarm input 1 - 32*, Alarm output 1 - 4**, Alarm reset input* *Non-voltage make contact input **Open collector output, 24 V DC, -200 mA max |
| Control Time adjustment input*, 2x +5 V output**, Emergency recording input, External recording mode switching input *Non-voltage make contact input **+5V ±0.5 V 200 mA max. | |
| Error/Warning Network error output*, HDD error output*, Camera error output*, Recorder error output*, Recording error output*, Outage detection input, Outage processing end output *Open collector output, 24 V DC, -200 mA max | |
| Mouse Connection Port | 2 (Front 1, Rear 1) |
| Network Port | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
| USB Storage | USB 3.0/ USB 2.0 memory, USB 3.0/ USB 2.0 connected HDD (except bus powered device |
| External Storage | 5x WJ-HXE400 |
| Network | |
| Network Interface | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
| Maintenance Network Port | 1x 10BASE-T/ 100BASE-TX (RJ45) |
| Maximum Recording Rate | 384Mbps or less |
| Maximum Band Width | Total 640 Mbps or less |
| Supported Protocol | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6: ICMPv6 |
| Upon Alarm or Warning | |
| No. of Simultaneous Users | 16 or less |
| User Registration | Up to 32 users |
| User Level | 3 Levels (Programmable) |
| Partitioning | User level - Camera (View & Control, No Access) |
| Security Method | User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS |
| Other Functions | |
| Time Synchronization | Terminal (Slave), NTP (Server/Client) |
| Summer Time | User de nable (using menu setup) |
| Remote Monitoring on Smartphone/Tablet | 16 clients or less* *Panasonic Security Viewer v.3.0 or later is required on smartphone/tablet PC. |
| HDD | |
| Type | 8.89cm (3.5 inch) Serial ATA HDD, Up to 9x HDDs can be installed. (with HDD canister as standard accessory) |
| Maximum Capacity | 54HDD slots (with 5x WJ-HXE400 Extension Units, 9x HDDs installed in each unit) Up to 6 TB will be supported.* *Please check the following URL for the latest information |
| RAID (Hardware RAID) | Single, RAID1, 5, 6 |
| Viewer Software | |
| Playback Control | Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Additional Functions | NX Viewer: Alteration detection, Save as JPEG, Two times zoom, Print, Copy, Aspect ratio switching, sh eye correction, corridor display |
| Supported OS, Language | Language of the software will be English or Japanese |
| General | |
| Safety/ EMC Standard | CE (EN60065, EN55032 ClassB, EN55024), EAC |
| Power Source | 220V - 240VAC 50 Hz/60 Hz |
| Power Consumption | approx. 125 W (with 6 TB HDD x9) |
| Ambient Operating Temperature | Main body: +5°C to +45°C (41°F to 113°F) Mouse (provided): +5°C to +40°C (41°F to 104°F) |
| Ambient Operating Humidity | 5% to 90% (without condensation) |
| Maximum Operating Altitude | 2.000 m (6,562 feet) above sea level |
| Dimensions | 430 mm (W) x 132 mm (H) x 413 mm (D)(From Rack Mount Bracket 400 mm) {16-15/16 inches (W) x 5-3/16 inches (H) x 16-1/4 inches (D)} (From Rack Mount Bracket 15-3/4-inch) (excluding rubber feet and projections) |
| Mass (approx.) | When no HDD is installed: 11.5 kg {25.4 lbs}/ When 9 HDDs are installed: 20 kg {44.1 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
