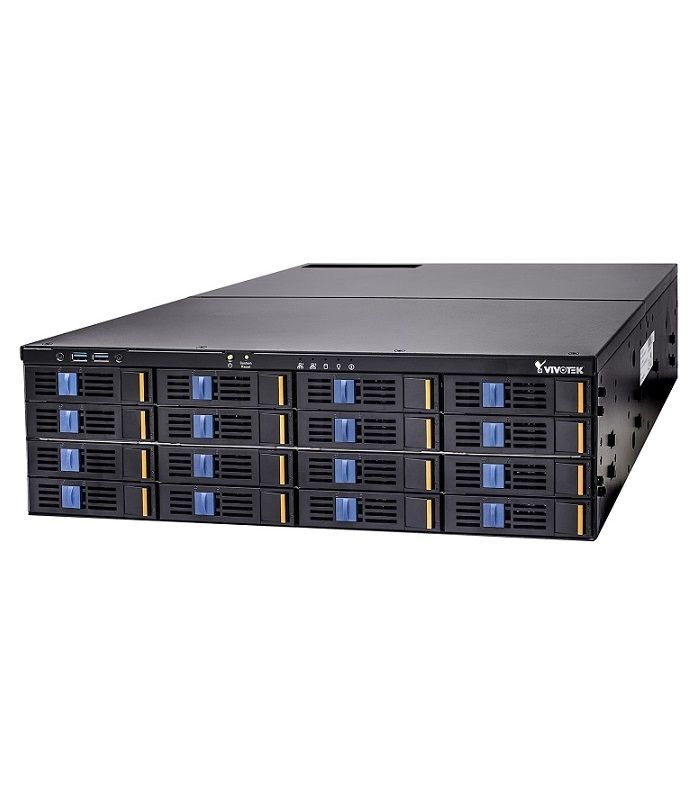

Đầu ghi hình camera IP 64 kênh Vivotek NR9682-V2
- H.265/H.264 Compression Technology
- Up to 64CH Recording, 64CH Display
- Support HDMI, Display Port & DVI Simultaneous Output
- 16 Hot-Swappable HDD Bays
- Support RAID 0/1/5/6/10 Storage
- Redundant Power
- Multiple Fisheye Dewarp Support
- Dual Lan Giga Network Ports
- VIVOTEK VAST 2 CMS Inside
- Smart Search II: People/Vehicle Search
- Analytics Integration: Smart VCA, Parking Violation/Restricted Zone Detection
- Cybersecurity Management Solution
- Comprehensive VIVOTEK Solution Support
Specifications
| Model | NR9682-v2 |
| OS | Embedded Windows 10 |
| Watchdog | Hardware + Software |
| Power Restoration | System restart automatically after power recovery |
| Local Display | |
| LiveView Display | 64 Channels Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single layout display, full screen display Custom layout, layout rotation |
| Video Output | HDMI x1, Display Port x1, DVI x1 |
| Display Resolution | HDMI: 1920x1080 DVI: 1920x1080 DP: 4096x2304 |
| Dual Monitor | Supported |
| Camera Position | Change the view cell position on the live view screens |
| Stream Application | Stream Selection & Auto Stream Size |
| Monitor Enhancement | E-Map Embedded, Drag & Drop, Remote I/O Control, PiP (Digital Zoom), Instant Play back, Video display mode (aspect ratio & camera information) Metadata display (VCA, POS and Data Magnet) |
| Fisheye Dewarp | 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and fisheye auto-pan |
| PTZ Operation | Direction control, home, zoom, focus, iris, preset, patrol (group), tracking, pan, stop, speed, wiper blade control |
| Video | |
| Video Format | MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265 |
| Graphic Decoder | Software decoding |
| Decoding Resolution | Up to 8192x8192 |
| Decoding Capability | H.264: 1920x1080 @ 540 f ps H.265: 1920x1080 @ 270 f ps |
| Audio | |
| Audio Format | G.711, G.726, AMR, AAC |
| Audio In/Out | Microphone audio jack Input x1 3.5 line output audio jack x1 |
| 2-way Audio | Supported |
| Record | |
| Recording Time (sec.) | Pre-Record: 3-15 Post-Record: 10-60 |
| Recording Stream | Single |
| Recording Throughput | 512Mbps |
| Recording Mode | Continuous, event, customized schedule, activity adaptive streaming |
| Recording Setting | Recycling time depends on the remaining storage space or the set number of days |
| Seamless Recording | Supported |
| Storage & Backup | |
| HDD Devices | Hot-Swappable tray x16 |
| RAID | RAID 0, 1, 5, 6, 10 |
| Disk Management | Create, format and remove disk |
| Video Clip Export | USB Dongle (FAT Format) NAS (SMB & CIFS) |
| Schedule Backup | NAS (SMB & CIFS) |
| Playback | |
| Playback Display | 64 Channels (the max. number of monitors supported depends on the decoding capability of your system) Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single layout display, full screen display Custom layout, layout rotation |
| Playback Control | Play, rewind, pause, stop, next/previous frame, 1/64X ~ 64X speed control, bookmark |
| Video Search | Calendar, event, alarm, bookmark, thumbnail, Smart Search II, transaction (POS), Data Magnet, log |
| Snapshot | BMP & JPEG |
| Video Clip Exp | 3GP & EXE |
| Network | |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Video Throughput for Remote Client | 400 Mbps |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| Alarm Management | |
| Alarm Period (sec.) | Max. 30 |
| Alarm Filter | Time, trigger type (camera/substation/system), status, name, trigger source |
| Alarm Setting | Realtime system notification Alarm result display by list or thumbnail |
| Schedule Type | Continuous, schedule, manual |
| Camera Event | General: motion detection, camera DI, camera DO, IR (infrared), PIR (passive infrared), tampering detection, temperature, camera disconnected, recording error, stop recording, video loss (video server only), SD card life expectancy detection, audio detection, shock detection Smart VCA: intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection Smart 360 VCA: intrusion detection, crowd detection, loitering detection Trend Micro IoT Security: brute force attack, cyberattack, quarantine event detection, Shock detection Smart VCA: Line crossing detection, Intrusion detection, Loitering detection, Face detection, Missing object detection, Unattended object detection, Crowd detection, Runninge Detection Trend Micro IoT Security : Brute f orce attack, Cy berattack, Quarantine ev ent |
| eMap | |
| Source | Import picture & folder |
| Device | Camera, external DI/O |
| Marked | Add, remove, direction control, PTZ control, FOV control, live view & playback |
| Event Notification | One or More Live Streaming |
| External Interface | |
| USB | Front: USB 3.0 x2 Back: USB 3.0 x6, USB2.0 x2 |
| Audio | Microphone audio jack Input x1 3.5 Line output audio jack x1 |
| System | |
| POS Integration | Supported |
| UPS Integration | Supported |
| Camera Integration | ONVIF Profile S |
| Log | Operation, system and event log |
| Date & Time | Sync server |
| Advanced Features | |
| VCA Counting Solution | Supported |
| VCA Event Search | Smart VCA, Smart 360 VCA |
| Smart Search | Smart Search I & Smart Search II |
| Cybersecurity Management | Supported |
| Failover | Supported |
| Remote Client | |
| Software AP | Shepherd, VAST 2 |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Internet Explorer 9 (32 bit) or above |
| General | |
| Power Input | Redundant power 100~220V AC |
| Power Consumption | Max. 550 W |
| Redundant Power | Supported |
| Dimensions | 132 (H) x 435 (W) x 540 (D) mm |
| Weight | 33 kg (without HDD) |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL |
- Bảo hành: 24 tháng.
