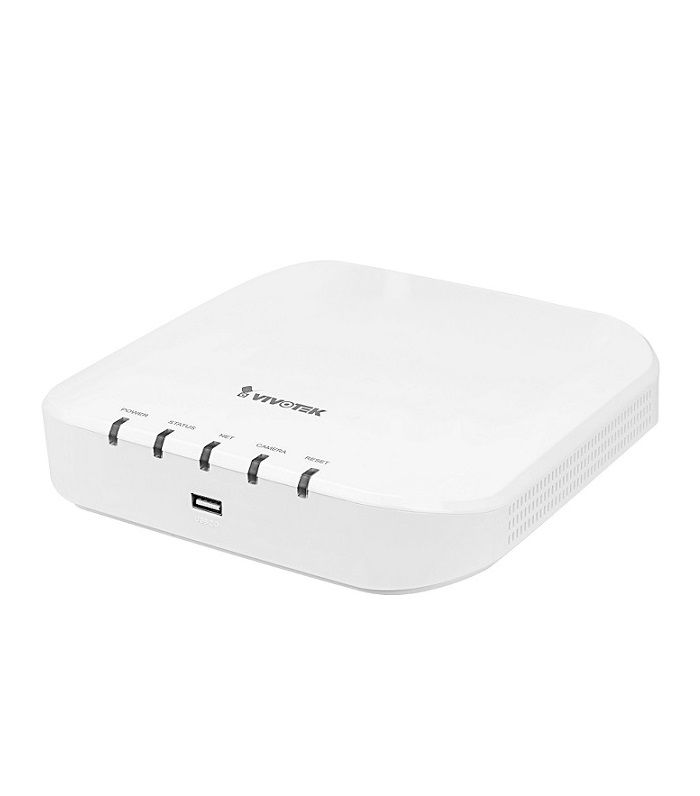

Đầu ghi hình camera IP 8 kênh Vivotek ND9312
- H.265 Compression Technology
- Up to 8 Channel IP Camera Input
- HDMI Video Output up to 4K Resolution
- 1 x 3.5″ SATA HDD
- Up to 8MP Camera Live View and Playback
- Trend Micro IoT Security
- Multiple Browsers Supported: IE, Chrome, and Firefox on both Windows & macOS
- Live and Playback Fisheye Dewarp
- VIVOCloud App & Portal for 24/7 Viewing
- Compact Size with Fanless Design
Specifications
| Model | ND9312 |
| OS | Embedded Linux |
| CPU | ARM Processor |
| Flash | 256 MB |
| RAM | 1 GB |
| Watchdog | Hardware + Software |
| Power Restoration | System restart automatically after power recovery |
| Local Display | |
| LiveView Display | 8 Channels Multi-layout display: 1×1, 3V, 2×2, 3×3, 1P+3, 2P+3, 1M+5, 1P+6 |
| Video Output | HDMI x1 |
| Display Resolution | 3840×2160,1920×1080, 1280×720 |
| Camera Position | Change the viewcell position on the Live View screens |
| Stream Application | ConstantAuto Adaptive Stream |
| Monitor Enhancement | OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio |
| Fisheye Dewarp | 1O, 1P, 1R, 1O3R, 1O8R |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Video | |
| Video Format | H.265, H.264, MJPEG |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 3840×2160 |
| Decoding Capability | 3840×2160 @ 30 fps (1-CH) 1920×1080 @ 120 fps (4-CH) 1280×720 @ 240 fps (8-CH) |
| Audio | |
| Audio Format | G.711, G.726 |
| Audio In/Out | HDMI with audio out |
| Record | |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Single |
| Recording Throughput | 48 Mbps |
| Recording Mode | Continuous, schedule, manual, event, activity adaptive streaming |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Storage & Backup | |
| HDD Devices | Internal x1 (3.5″) |
| Disk Management | Create, format and remove disk HDD S.M.A.R.T. |
| Manual Backup | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | |
| Playback Display | 4 Channels Multi-layout display: 1×1,2×2,1P+3,1V+3 |
| Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | JPEG |
| Video Clip Exp | EXE |
| Network | |
| Ethernet | 10/100Mbps Ethernet (RJ-45) x 1 |
| Video Throughput for Remote Client | 40 Mbps |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| External Interface | |
| USB | USB 2.0 x 2 (front x1, back x1) |
| Audio | HDMI with audio out |
| System | |
| Camera Integration | ONVIF Profile S |
| Event | Motion detection, PIR detection, tampering detection, camera DI/DO, camera disconnected, disk failure, disk full |
| Event Action | Record, email (text/snapshot), FTP, buzzer, ePTZ control (go to preset), camera DO, send to CMS, VIVOCloud APP notification |
| User Management | User level: administrator, regular user |
| Log | System, recording, user, error |
| Date & Time | Time zone, manual, automatic sync NTP, daylight saving time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese |
| Advanced Features | |
| Trend Micro IoT Security | Supported |
| Remote Client | |
| Software AP | Shepherd, VAST 2 |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Internet Explorer 10 (32 bit) or later / Windows Chrome v68.0.3 & Firefox v61.02 or later / Windows & macOS |
| VIVOCloud | Supported |
| General | |
| Power Input | DC 12V 3A |
| Power Management | Max. 15 W |
| Dimensions | 198 (W) x 200 (D) x 47 (H) mm |
| Weight | 530 g (Without HDD) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL |
- Bảo hành: 12 tháng.
