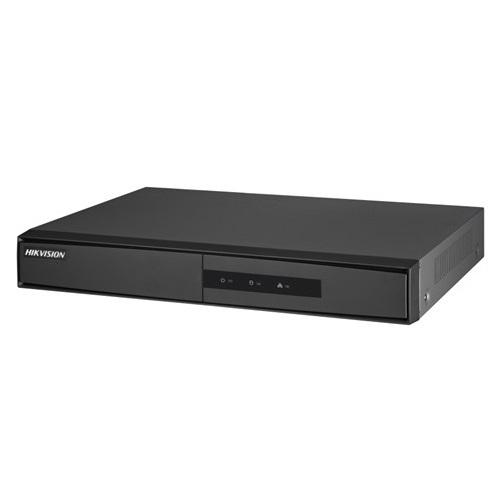

Đầu ghi hình HD-TVI 16 kênh HIKVISION DS-7216HGHI-F2
- Đầu ghi hình HD-TVI tối đa 16 kênh Analog + 2 kênh IP 2 Megapixel.
- Ghi hình 1080P Lite@25fps, 720P@25fps.
- Chuẩn nén hình ảnh: H.264+/H.264.
- Cổng xuất hình ảnh HDMI & VGA 1080P đồng thời.
- Hỗ trợ 2 ổ cứng (tối đa 6TB/ổ).
- Hỗ trợ 1 cổng mạng 10/100Mbps.
- Audio (in/out): 1/1.
- Nguồn điện: 12VDC.
- Kích thước: 380×320×48mm.
- Trọng lượng: 2kg.
- Chất liệu: Vỏ sắt.
Đặc tính kỹ thuật
| Model | DS-7216HGHI-F2 |
| Recording | |
| Video Compression | H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video And Audio | |
| IP Video Input | 2-ch (up to 18-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous Playback | 16-ch |
| VGA/HDMI Output | 1-ch, 1920 × 1080/ 60Hz, 1280 × 1024/ 60Hz, 1280 × 720/ 60Hz, 1024 × 768/ 60Hz |
| Network | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SATA | 2 SATA interfaces |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12VDC |
| Consumption (Without HDD) | ≤ 20W |
| Working Temperature | -10 °C to 55 °C (14 °F to 31 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (14.9 × 12.6 × 1.9 inch) |
| Weights (Without HDD) | ≤ 2 kg (4.4 lb) |
- Bảo hành: 24 tháng.
