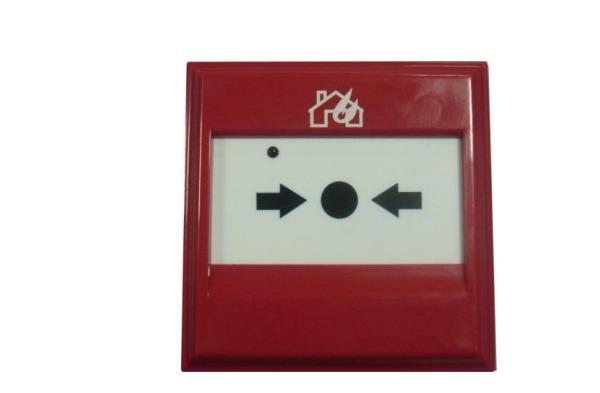

Nút nhấn khẩn GST DC-9204E
- DC-9204E Innovation Manual Call Point (MCP) is non-addressable. It alarms by the output current. It can be simply connected to compatible conventional fire alarm system from various manufacturers. The MCP is suitable for public places. When there is a fire, pressing the frangible element on the MCP can send fire signal to fire alarm control panel.
Specifications
| Model | DC-9204E |
| Operating Voltage | 24VDC (12~28VDC) |
| Standby Current | 0mA |
| Alarm Current | ≤30mA (equivalent resistance is 470Ω 1/2W) |
| Indicator | Red. Illuminates after alarming. |
| Type of Initiating Part | Reusable |
| Initiating Mode | Pressing the frangible element manually |
| Resuming Mode | Manually resumed by a special key |
| Wiring | two-wire |
| Class | Type A, indoors |
| Ingress Protection Rating | IP43 |
| Environmental Temperature | -10℃~+55℃ |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS, red |
| Dimension (L×W×H) | 87.1×87.1×58.5 mm (with back box) |
| Mounting Hole Distance | 60mm |
| Weight | About 160g (with back box) |
- Bảo hành: 12 tháng.
