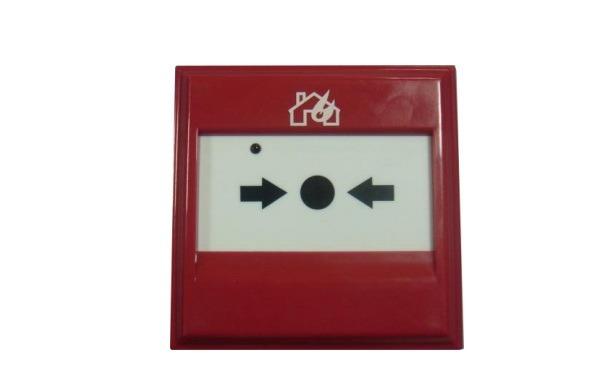

Nút nhấn khẩn GST DC-M9204
- DC-M9204 Innovation Manual Call Point (MCP) is non-addressable. It alarms by the current caused by pressing the frangible element. It can be simply connected to compatible conventional fire alarm system from various manufacturers. This MCP is suitable for public places. When there is fire, pressing the frangible element on this MCP can send alarm signal to compatible conventional fire alarm control panel.
- Alarm by pressing, reset by a special key.
- Plug-in structure.
- Standard: UL38.
Thông số kỹ thuật
| Model | DC-M9204 |
| Operating Voltage | 24VDC(12VDC ～28VDC) |
| Standby Current | 0mA |
| Alarm Current | ≤30mA(equivalent resistance is 470Ω 1/2W) |
| Indicator | Red. Illuminates after alarming. |
| Type of Initiating Part | Reusable |
| Initiating Mode | Pressing the frangible element manually |
| Resuming Mode | Manually resumed by a special key |
| Wiring | two-wire |
| Ingress Protection Rating | IP43 |
| Environmental Temperature | -10℃～+50℃ |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 87.1mm×87.1mm×58.5mm (with back box) |
| Mounting Hole Distance | 60mm |
| Weight | About 160g (with back box) |
