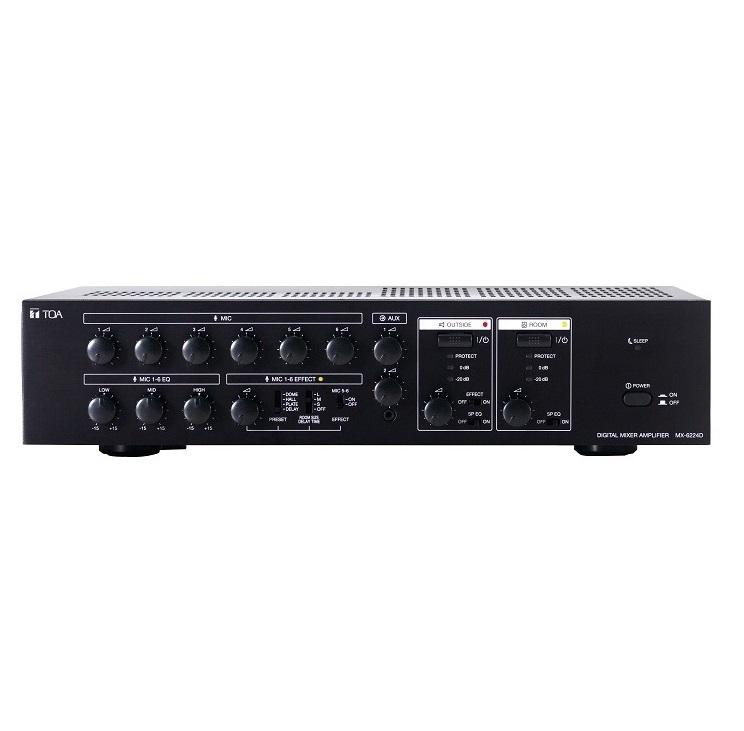

Digital Mixer Amplifier TOA MX-6224D
- The MX-6224D, Digital mixer amplifier 2×240W, is designed for 2 zones Public address system that suitable for middle sized mosques application.
Specifications
| Model | MX-6224D |
| Power Source | 220 - 240 VAC, 50/60 Hz |
| Power Output | 240 W × 2 channels (100 V, 42 Ω, rated output) |
| Power Consumption | 100 W (according to IEC60065), 570 W (at rated output, both channels) |
| Amplification System | Class D, Output transformerless galvanic isolated output |
| Frequency Response | 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input) |
| Distortion | 1% or less (at 1 kHz, 1/3 rated output power) |
| Input | MIC 1: -50 dB (24V phantom powered)/-60 dB (phantom power OFF) 600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance) MIC 2 - 4: -66 dB, 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable) MIC 5 - 6: -60 dB, 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable) AUX 1: -10 dB, 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair) AUX 2: -20 dB, 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo) Power amplifier input: 0 dB, 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs) |
| Output | Speaker output: 2 zones, 100V (42 Ω), galvanic isolated balanced, M4 screw terminal Recording output: 0dB, 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Effect bus output: 0 dB, 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Preamplifier output: 0 dB, 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs) |
| Phantom Power | ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6 |
| Signal to Noise Ratio | 60dB or more (All volume controls: min.) |
| Controls | 6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31) |
| Indicators | SLEEP indicator Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE Protection indicators for ROOM and OUTSIDE amplifiers Output indicators for ROOM and OUTSIDE EFFECT indicator for MIC 1 - 6 |
| Ventilation | Natural air cooling |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Dimensions | 420 (W) × 99.8 (H) × 360.6 (D) mm |
| Installation Method | Desktop mount, Rack mount with mounting bracket MB-25B (option) |
| Weight | 6.1 kg (13.45 lb) |
| Finish | Front Panel: Aluminum, black, alumite Case: Steel plate, black, paint |
| Accessory | Power supply cord …1, Sticker for Arabic indication …1 |
| Option | Remote controller: RC-03 Power amplifier: P-2240 Multichannel power amplifier: DA-250FH Dynamic microphone: DM-1300 Lavalier microphone: EM-410 Horn speaker: TC-631M, TC-651M Universal speaker: BS-1030B, BS-1030W Rack mounting bracket: MB-25B Perforated panel: PF-013B |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
