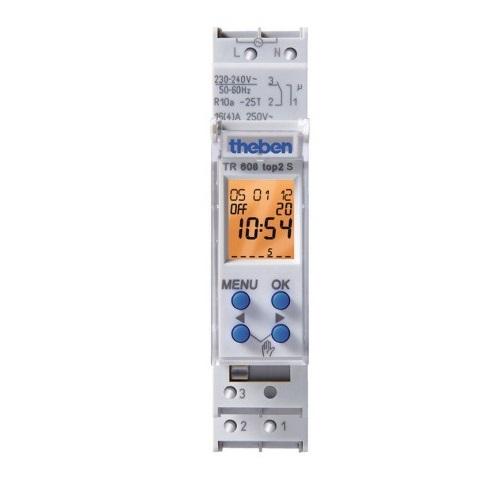

Digital Time Switches THEBEN TR 608 top2 S
- Part Number: 6080101.
- Digital time switch with weekly program.
- 1 channel.
- 56 memory locations.
- DuoFix spring terminals:
+ For 2 conductors each.
+ Wire or strand (with or without wire end sleeve).
+ Wire diameter: 0.5 - 2.5 mm².
+ Button for releasing plug-in connection.
- Text-oriented user guidance in display:
+ Preset date and time.
+ fully operable without mains connection.
- Interface for OBELISK top2 memory card (PC programming):
+ 2.insertable switching program.
+ Copying programs
+ Storing programs.
- 10 year power reserve (lithium battery).
- ON-OFF switching times.
- Switching preselection.
- Permanent switching ON/OFF.
- Integrated operating hour counter:
+ Reset option.
+ Service function for monitoring maintenance intervals.
- Holiday program.
- Permanent switching ON/OFF.
- PIN coding.
- Automatic summer/winter time changeover:
+ can be deactivated.
+ Date rule options are already stored for Europe, the USA and other countries.
+ Own date rule options or changeover around set dates are available.
Đặc tính kỹ thuật
| Model | TR 608 top2 S |
| Operating voltage | 230 – 240 VAC |
| Frequency | 50 – 60 Hz |
| Width | 1 modules |
| Installation type | DIN rail |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm (µ) |
| Program | Weekly program |
| Number of channels | 1 |
| Number of memory locations | 56 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ=1 | 16 A |
| Switching capacity at 250 V AC, cos φ=0,6 | 4 A |
| Incandescent/halogen lamp load 230 V | 1000W |
| Energy saving lamps 230 V | 30W |
| LED lamp < 2 W | 6W |
| LED lamp 2-8 W | 60W |
| LED lamp > 8 W | 60W |
| Fluorescent lamp load (conventional) not corrected | 1000W |
| Fluorescent lamp load (conventional) series-corrected | 1000W |
| Fluorescent lamp load (conventional) parallel-corrected | 80W-12µF |
| Switching capacity min. | ~10 mA |
| Shortest switching times | 1 min |
| Time accuracy at 25 °C | typical ± 0,25 s/day (quartz) |
| Time basis | Quartz |
| Stand-by consumption | ~0,4 W |
| Test approval | VDE |
| Type of connection | DuoFix spring terminals |
| Keyboards | 4 touch buttons, 1 reset button |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 230 VAC |
| Ambient temperature | -25 °C … +55 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
