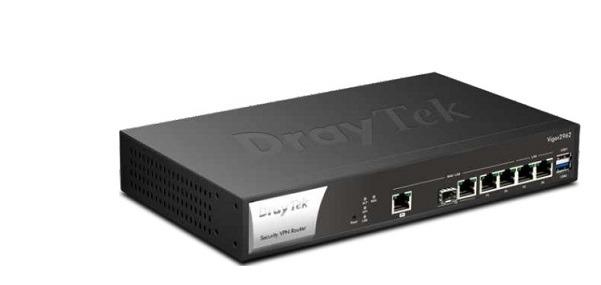

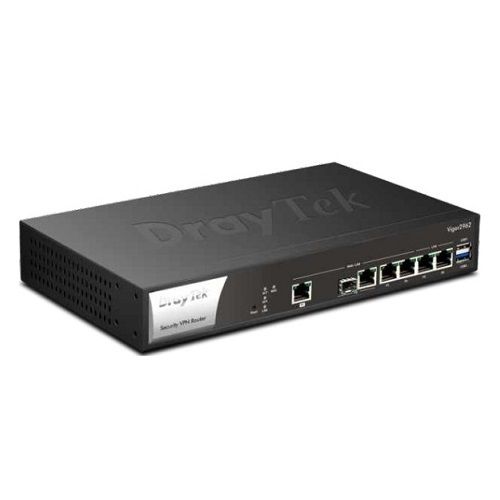

2.5G Security VPN Router DrayTek Vigor2962
- 4 LAN/WAN configurable ports (1 x 2.5GbE & 1 x SFP/GbE combo & 2 x GbE).
- 2 Gigabit Ethernet LAN ports.
- 2 USB for 3G/4G USB mode, printer, network storage or temperature sensor.
- 200 simultaneous VPN tunnels including up to 50 SSL VPN.
- Support High Availability (hardware redundancy).
- Central Management for VigorAP & VigorSwitch.
Đặc tính kỹ thuật
| Model | Vigor2962 |
| WAN Protocol | Giga Ethernet WAN - IPv4 + DHCP Client + Static IP + PPPoE + PPTP + L2TP + 802.1q/p Multi-VLAN Taggin - IPv6 + Dual Stack: PPP, DHCPv6 Client Static IPv6 + Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel - USB WAN + PPP - Outbound Policy-based Load-balance - WAN Connection Failover - Multi-PVC/VLAN - NAT Session: up to 100,000 |
| LAN Switch | - Port-based VLAN - Tag-based VLAN - Bind-IP to MAC Address - LAN Port Mirror - Wired 802.1X - Link Aggregation + Support on LAN Port 3 & 4 + Support XOR MAC Source & + Destination Address Mode |
| VPN | - Up to 200 VPN Tunnels (Including 50 SSL VPN Tunnels) - Protocol: PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPsec, IKEv2, SSL VPN, OpenVPN - Encryption: MPPE and Hardware-based AES/DES/3DES - Authentication: MD5, SHA-1, SHA-256 - IKE Authentication: Pre-shared key and Digital Signature (X.509) - mOTP - LAN-to-LAN, Teleworker-to-LAN - DHCP over IPsec - IPSec NAT-traversal (NAT-T) - Dead Peer Detection (DPD) - VPN Pass-through - VPN Wizard - VPN Trunk |
| Firewall | - Port Mapping + Port Redirection: 100 Entries + Open Ports: 100 Entries + DMZ Host: Private IP + Port Triggering: 40 Entries - Rule-based Firewall - Object-based Firewall - SPI (Stateful Packet Inspection, Flow Track) - DoS Defense - Time Schedule Control - Firewall Wizard and Advanced Mode - Email Alert and Logging via Syslog - IP Address Anti-Spoofing - IPv6 Firewall |
| Network Feature | - Packet Forwarding Acceleration - DHCP Client/Relay/Server - DHCP Option: 1, 3, 6, 43, 51, 53, 54, 58, 59, 60, 61, 66,125 - DHCP B-class Pool - RADVD for IPv6 - DHCPv6 Server - Static IPv6 Address Configuration - IGMP Proxy v2 / v3 - IGMP Snooping - Triple-play Application - Dynamic DNS - DNS Cache / Proxy - DNS Security - DNS Forwarding - LAN DNS - NTP Client - Call Scheduling - Hotspot Web Portal (4 profiles) - RADIUS Server / Client - UPnP 200 Sessions - Wake on LAN - Bonjour Service |
| Bandwidth Management | - QoS + First Priority for VoIP SIP/RTP + Class-based Bandwidth guarantee + DiffServ Code Point Classifying + 4-level Priority for Inbound / Outbound + Bandwidth Borrowed - Bandwidth/Sessions Limitation + Smart Bandwidth Limit - APP QoS - WAN Budget |
| Content Security Management | - APP Enforcement + Support APPE Signature Upgrade by License - URL Content Filter : + URL Keyword Blocking (White List and Black List) + Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking + Excepting Subnets - WEB Content Filter - DNS Filter |
| Network Management | Web-Based User Interface (HTTP/HTTPS) Command Line Interface (Telnet/SSH) Dashboard Quick Start Wizard Administration Access Control Configuration Backup/Restore '- Built-in Diagnostic Function - Firmware Upgrade via HTTP/TFTP/TR-069 - Logging via Syslog - Syslog Explorer - SNMP v2/v2c/v3 - Object-Based SMS/Mail Alert - Management Session Time Out - Multi-level Management - Admin and User Mode - Disable User Mode in Default - TR-069/TR-104 - 802.3az - Self-signed Certificate - Support Multi-firmware Upgrade Utility |
| Hardware Interface | - 4 x LAN/WAN configurable ports (1 x 2.5GbE & 1 x SFP/GbE combo & 2 x GbE) - 2 x 10/100/1000Base-Tx LAN Switch, RJ-45 - 802.3af/at PoE Output on P1 and P4~P6 (P model) - 2 x USB Host (USB1 is 2.0 and USB2 is 3.0) - 1 x Factory Reset Button |
- Bảo hành: 2 năm.
