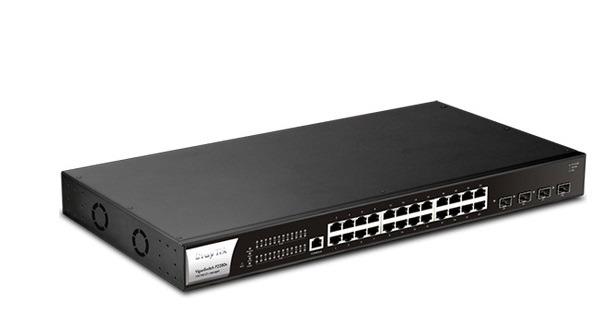

28-Port L2+ Managed Gigabit PoE Switch DrayTek VigorSwitch P2280x
- 24-Port PoE L2+ Managed Gigabit Switch (24 Port PoE Gigabit + 4 Port 10 Gigabit SFP).
- Hỗ trợ 24 port LAN Gigabit PoE 802.3af/at.
- Hỗ trợ 4 port Gigabit/10Gigabit SFP+ slot, 1 port console RJ-45.
- Hỗ trợ 1 Factory Reset Button.
- Quy định mức độ ưu tiên cho từng port.
- Quy định mức công suất tối đa cho từng port.
- Theo dõi mức tiêu thụ của từng port (W/A).
- Kiểm tra trạng thái thiết bị đầu cuối (ping detect) để reset lại nguồn của port nếu thiết bị đó bị treo.
- Lập lịch cung cấp nguồn cho từng port (tiết kiệm điện năng).
- Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, MAC based VLAN, Protocol-based VLAN, VoIP VLAN, Surveillance VLAN, VLAN Management Q-in-Q basic, Port Isolation.
- Tính năng LACP giúp gộp băng thông đường truyền(8 group, mỗi group tối đa 8 port).
- Tính năng Spanning Tree, Loop detection giúp tăng cường độ ổn định hệ thống.
- IGMP snooping, QoS tối ưu cho dịch vụ âm thanh và video.
- DHCP snooping chống giả mạo DHCP server.
- Tính năng Layer 3 như: DHCP server/Static Route/VLAN route.
- Cấu hình bằng giao diện web và dòng lệnh.
- Tổng công suất nguồn cấp PoE: 480W.
Đặc tính kỹ thuật
| Model | VigorSwitch P2280x |
| Interface | |
| LAN Port | 24x 10/100/1000Mbps Ethernet, RJ-45 4x 1000Mbps/10Gbps SFP+ slot |
| Console Port | 1x RJ-45 |
| Button | 1x Factory Reset Button |
| PoE | |
| PoE Capable Ports | 24 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 400 watts |
| Power Limit | Yes |
| Scheduled On/Off | Yes |
| Power Cycle on Port | Manual, Ping Watchdog |
| Capacity | |
| Buffer Size | 12 Mbit |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps (64 bytes) |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 12 KB |
| L3 Routing Table | Max. 1k |
| Networking Standards | |
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T IEEE802.3ae 10GBase-X 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
| VLAN | |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| 802.1x Guest VLAN | Yes |
| Port Isolation | Yes |
| GVRP | Yes |
| Q-in-Q | Basic |
| ONVIF Surveillance | |
| Discovery | Yes |
| Surveillance Topology | Yes |
| Real-Time Video Streaming | Yes |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
| QoS | |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | Yes |
| Security | |
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | Yes |
| 802.1x Port Access Control | Yes |
| IP Source Guard | Yes |
| IP Conflict Prevention | Yes |
| Loop Protection | Yes |
| Dynamic ARP Inspection | Yes |
| DHCP Snooping with Option 82 | Yes |
| Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
| Multicast | |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | Yes |
| MLD Snooping | v1, v2 (Basic) |
| Max. Number of Multicast Group | 256 |
| Group Throttling | Yes |
| Group Filtering | Yes |
| MVR (Multicast VLAN Registration) | Yes |
| Layer 3 Features | |
| Static Route | Yes |
| VLAN Route | Yes |
| AAA | |
| Authentication Server | RADIUS, TACACS+ |
| Port Authorization | Yes |
| Management Account | Yes |
| RADIUS Attribute Assignment | User Privilege, VLAN |
| Accounting | Yes |
| Multiple Server | Yes |
| Management | |
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| sFlow | Yes |
| SNMP | v1, v2c, v3 |
| Private MIB | Yes |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP-MED, Media Endpoint Discovery Extension |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | Yes |
| 2-Level Admin Privilege | Yes |
| Multiple Admin Accounts | Yes |
| Managed by VigorRouter SWM | Yes |
| Managed by VigorACS 2 | Yes |
| Config File Export/Import | Yes |
| Dual Image | Yes |
| SNTP (Simple Network Time Protocol) | Yes |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test, Fan Test |
| 19-inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 480 watts |
| Dimension (mm) | 441(W) x 270(D) x 44(H) |
| Weight | 4.25 kg (9.0 lb) |
| Ventilation | Variable-speed Fan |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
- Bảo hành: 2 năm.
