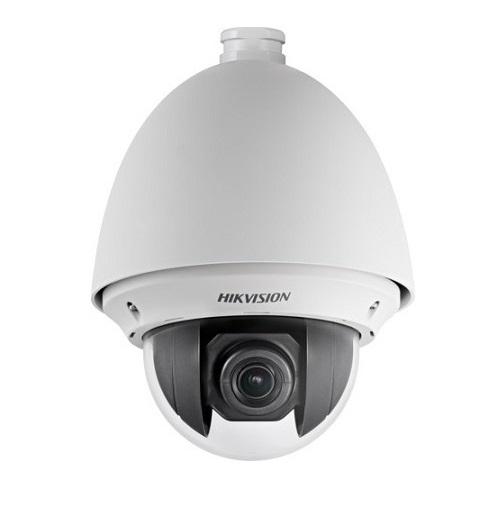

Camera HD-TVI Speed Dome 2.0 Megapixel HIKVISION DS-2AE4215T-D(E)
- HIKVISION DS-2AE4215T-D(E) thuộc dòng Camera Speed Dome Turbo 4-inch.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng:
+ Color: 0.005 Lux @(F1.6, AGC ON);
+ B/W: 0.001 Lux @(F1.6, AGC ON).
- Zoom quang: 15x.
- Zoom số: 16x.
- Hỗ trợ chuyển đổi để phù hợp với đầu ghi TVI/AHD/CVI/CVBS.
- Chức năng chống ngược sáng thực 120dB True WDR.
- Chức năng chống ngược sáng HLC.
- Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Kích thước: Ø 179.4 × 239.5 mm.
- Trọng lượng: 2kg.
Đặc tính kỹ thuật
| Model | DS-2AE4215T-D(E) |
| Camera | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | AUTO/MANUAL |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation) | Yes |
| EIS (Electric Image Stabilization) | Yes |
| Regional Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 5mm to 75mm, 15× Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Field of View | Horizontal field of view: 53.8° to 4.0° (wide to tele) Vertical field of view: 31.9° to 2.3° (wide to tele) Diagonal field of view: 60.4° to 4.6°(wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 2.4 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s |
| Tilt Range | -5° to 90° (auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/ Patrol/Pattern / Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/ Patrol/Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
| Input/Output | |
| Video Output | Switchable TVI/ AHD/ CVI/ CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max. 16W |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Ø 179.4 × 239.5 mm |
| Weight (approx.) | 2kg |
- Bảo hành: 24 tháng.
