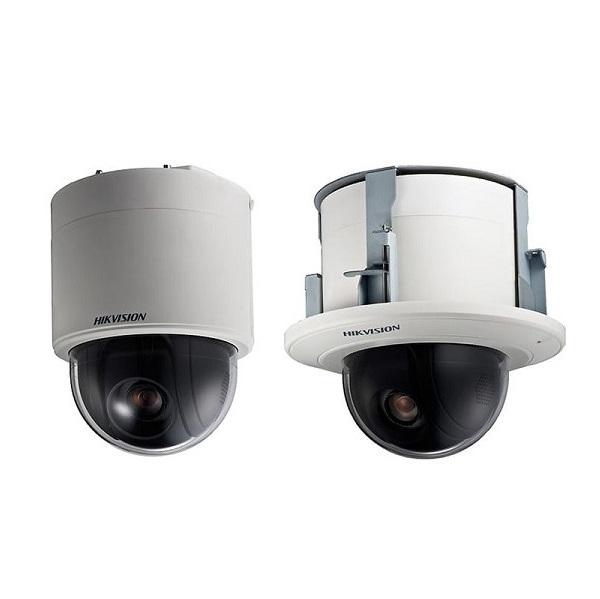

Camera HD-TVI Speed Dome 2.0 Megapixel HIKVISION DS-2AE5225T-A3
- HIKVISION DS-2AE5225T-A3 là camera HD-TVI thuộc dòng camera Speed Dome Turbo 5-inch.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON).
- Zoom quang: 25x.
- Zoom số: 16x.
- Chức năng chuyển đổi chế độ TVI/AHD/CIV/CVBS video out.
- Hỗ trợ chức năng chống ngược sáng thực 120dB true WDR (Wide Dynamic Range).
- Hỗ trợ chức năng định vị thông minh 3D.
- Hỗ trợ chức năng chống ngược sáng HLC.
- Hỗ trợ chức năng giảm nhiễu số 3D DNR (Dynamic Noise Reduction).
- Nguồn điện cung cấp: 24 VAC.
Đặc tính kỹ thuật
| Model | DS-2AE5225T-A3 |
| Camera | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) |
| 60Hz: 30fps @(1920 × 1080) | |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | AUTO/MANUAL |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s |
| NTSC: 1/1 s to 1/10,000 s | |
| Day & Night | IR cut filter |
| Digital Zoom | 16× |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation) | Yes |
| EIS (Electric Image Stabilization) | Yes |
| Regional Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25× Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Field of View | Horizontal field of view: 57.6° to 2.5° (wide to tele) Vertical field of view: 34.4° to 1.4° (wide to tele) Diagonal field of view: 64.5° to 2.9° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 250°/s |
| Pan preset speed: 250°/s | |
| Tilt Range | -5° to 90° (auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 150°/s |
| Tilt preset speed: 150°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 24 VAC Max. 18 W |
| Working Temperature | -10° C to 50° C (14° F to 122° F) |
| Working Humidity | 90% or less |
| Protection Level | TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Indoor: Ø 156 mm ×243 mm |
| In-Ceiling: Ø 156 mm ×236 mm | |
| Weight (approx.) | 3 kg (6.61 Ib.) |
- Bảo hành: 24 tháng.
