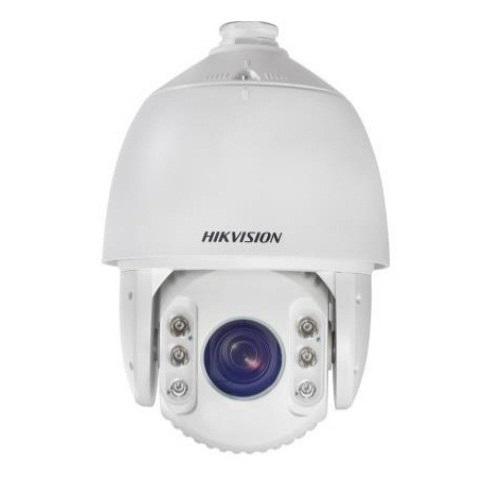

Camera Speed Dome 4 in 1 hồng ngoại 2.0 Megapixel HIKVISION DS-2AE7225TI-A(C)
- Cảm biến hình ảnh: 1/2.8 inch HD progressive scan CMOS.
- Độ phân giải Camera: 25fps @(1920 × 1080).
- Ống kính: 4.8 ~ 120 mm.
- Zoom quang: 25x.
- Zoom số: 16x.
- Độ nhạy sáng: Ultra-low light Power By DarkFighter.
- Tầm quan sát hồng ngoại: 150 mét.
- Chức năng chống ngược sáng thực 120 dB true WDR.
- Hỗ trợ 3D zoom.
- Chuyển đổi chế độ TVI/AHD/CVI/CVBS video out.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 24VAC.
- Công suất tiêu thụ: Max. 30W (IR:10W).
Đặc tính kỹ thuật
| Model | DS-2AE7225TI-A(C) |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| Shutter Time | PAL: 1/1 s to 1/10,000 s |
| NTSC: 1/1 s to 1/10,000 s | |
| White Balance | Auto/Manual/Hauto/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Day & Night | IR cut filter |
| Digital Zoom | 16× |
| Privacy Mask | 8 programmable privacy masks |
| BLC | Yes |
| HLC | Yes |
| EIS | Yes |
| Reginal Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25× Optical |
| Aperture Range | F1.6 to F3.5 |
| Horizontal Field of View | 57.6° to 2.5°(wide-tele |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | 3.6s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 160°/s Pan preset speed: 160°/s |
| Tilt Range | -15° to 90°(auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 120°/s Tilt preset speed: 120°/s |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Scheduled Task | Preset/ Patrol/ Pattern/ Pan Scan/Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
| Infrared | |
| IR Distance | Up to 150 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| Power | |
| Power | 24 VAC |
| Power Consumption | Max. 40 W (IR: 14 W) |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
- Bảo hành: 24 tháng.
