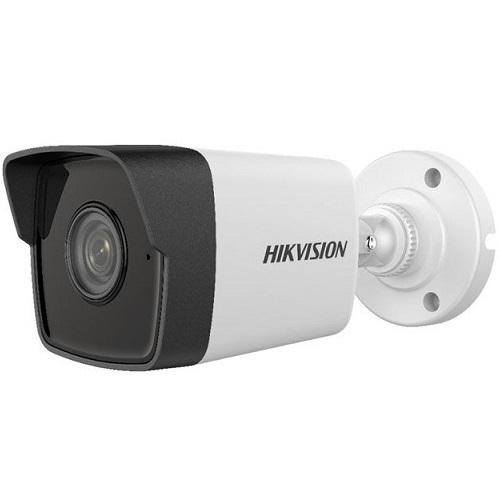

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1023G0E-IF
- DS-2CD1023G0E-IF là dòng camera IP hồng ngoại 2.0 Megapixel.
- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Độ nhạy sáng: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR.
- Ống kính: 2.8/4mm @ F2.0.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng chống ngược sáng số DWDR.
- Chức năng giảm nhiễu số 3DNR.
- Chức năng bù ngược sáng BLC.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chức năng cung cấp nguồn qua Ethernet PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | DS-2CD1023G0E-IF |
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed lens, 2.8/4 mm |
| Aperture | F2.0 |
| FOV | 2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-Set | |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 |
| Interface | |
| Communication Interface | 1 RJ45 self-adaptive Ethernet port |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only) |
| General | |
| Firmware Version | 5.5.83 |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.30 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max.4.0 W |
| Material | Front cover: metal, back cover: plastic |
| Dimensions | Camera: 67.8 × 66.2 × 177.6 mm With package: 216 × 121 × 118 mm |
| Weight | Camera: Approx. 280 g (0.6 lb.) With package: Approx. 480 g (1.1 lb.) |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IP67 (IEC 60529-2013) |
- Bảo hành: 24 tháng.
