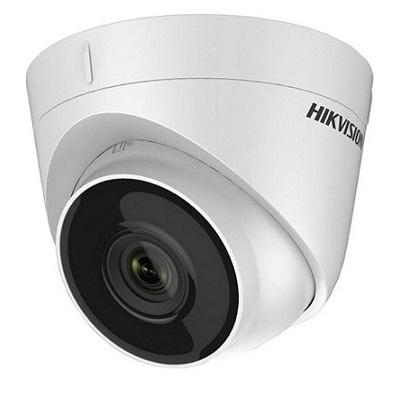

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1323G0-IU
Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1323G0-IU
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 1920 × 1080@30fps.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Ống kính: 2.8/4 mm fixed lens.
- Độ nhạy sáng: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng bù ngược sáng BLC.
- Chức năng giảm nhiễu số 3D-DNR.
- Tích hợp Micro.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Model | DS-2CD1323G0-IU |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Day & Night | ICR Cut |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Lens | |
| Lens Type & FOV | Fixed lens, 2.8/4 mm |
| Aperture | F2.0 |
| FOV | 2.8mm: Horizontal: 114°, vertical: 62°, diagonal: 135° 4 mm: Horizontal: 86°, vertical: 46°, diagonal: 102° |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Smart Feature-Set | |
| Region Of Interest | 1 fixed region for main stream and sub-stream |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, and User |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Simultaneous Live View | Up to 6 channels |
| Image | |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0) |
| Power Consumption | 12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W |
| Operating Conditions | -30°C ~ 60°C (-22°F to 140°F), humidity 95% or less (non-condensing) |
| Weather Proof | IP66 |
| Material | Camera body: metal, bottom base : plastic |
| Dimensions | 94.4 × Φ110 mm |
| Weight | 354 g |
- Bảo hành: 24 tháng.
