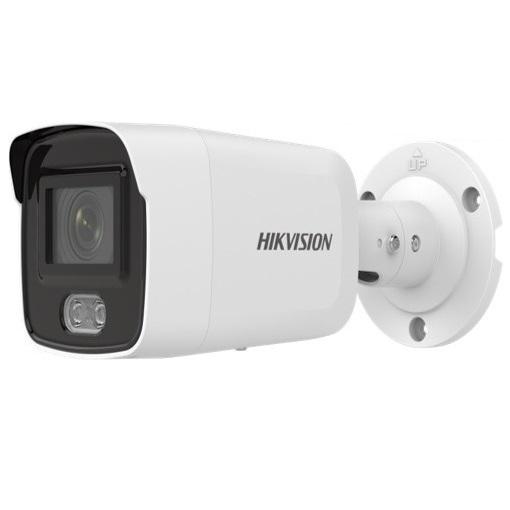

Camera IP COLORVU 4.0 Megapixel HIKVISION DS-2CD2047G1-L
- Camera 4MP ColorVu có màu ban đêm.
- Cảm biến hình ảnh: 1/1.8-inch Progressive Scan CMOS.
- Độ phân giải: 4.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+, H.265, H.264+, H.264.
- Độ nhạy sáng cực: Color: 0.0014Lux @ (F1.0, AGC ON), 0 Lux with white light.
- Đèn ánh sáng trắng lên đến 30 mét.
- Hỗ trợ chức năng chống ngược sáng thực 120dB WDR.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/1.8-inch progressive scan CMOS |
| Min. Illumination | Color: 0.0014Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| Lens | |
| Lens | 2.8/4/6 mm, fixed lens |
| FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 51°, diagonal FOV: 125° 4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 105° 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° |
| Aperture | F1.0 |
| Lens Mount | M16 |
| Illuminator | |
| White Light Range | 30m |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps(2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Stream Type | Main stream/Sub-stream/third stream |
| Simultaneous Live View | Up to 6 channels |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for each stream |
| Network | |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
| Image | |
| Day/Night Switch | Day/Night |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| S/N Ratio | >50dB |
| Interface | |
| RS-232 | RS-232 serial port control |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Smart Feature-Set | |
| Basic Event | Motion detection, video tampering alarm, exception (IP address conflict, illegal login, HDD full, HDD error) |
| Premier Protection | Intrusion detection, line crossing detection |
| General | |
| Web Client Language | English, Russian, Italian, French, Polish, Portuguese, Spanish, Turkish |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masks, IP address conflict, flash log |
| Software Reset | Yes |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger capture |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Startup and Operating | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Supply | 12 VDC ± 20%, PoE: 802.3af |
| Power Consumption and Current | 12VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5 W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | 85 × 85 × 218 mm (3.3inch × 3.3inch × 8.6inch) |
| Package Dimension | 315 × 137 × 141 mm (12.4inch × 5.4inch × 5.6inch) |
| Camera Weight | 0.710 kg (1.6 lb.) |
| With Package Weight | 1.035 kg (2.3 lb.) |
| Protection | Ingress protection: IP67 (IEC 60529-2013) |
- Bảo hành: 24 tháng.
