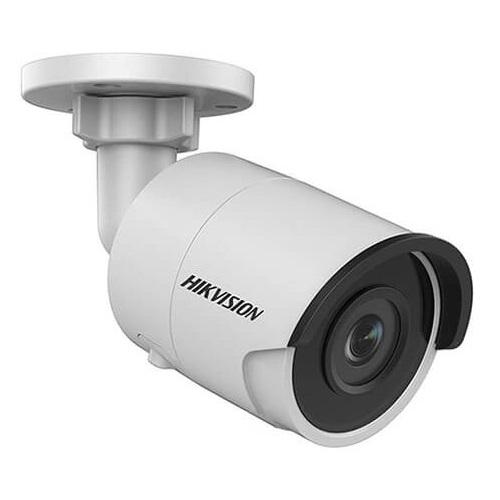

Camera IP hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2063G0-I
- Cảm biến hình ảnh: 1/2.9 inch Progressive Scan CMOS.
- Độ phân giải: 6.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264/MJPEG.
- Ống kính: 4mm (tùy chọn 2.8mm, 6mm).
- Ghi hình: 3072 × 2048@20 fps.
- Chống ngược sáng WDR 120dB.
- Độ nhạy sáng Màu: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON) 0 lux với hồng ngoại.
- Công nghệ hồng ngoại EXIR 2.0.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát ngày đêm ICR.
- Tính năng giảm nhiễu số 3D DNR.
- Tích hợp thẻ nhớ SD/SDHC/SDXC slot.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí.
- Nguồn điện: 12VDC & PoE.
- Kích thước: Φ 70 × 155 mm.
- Trọng lượng: 410 g.
Đặc tính kỹ thuật
| Model | DS-2CD2063G0-I | |
| Camera IP | ||
| Image Sensor | 1/2.9 inch Progressive Scan CMOS | |
| Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR | |
| Shutter Speed | 1/3 s to 1/100,000 s | |
| Slow Shutter | Yes | |
| Day & Night | IR Cut Filter | |
| Digital Noise Reduction | 3D DNR | |
| WDR | 120dB | |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Lens | ||
| Focal Length | 2.8/4/6/8 mm | |
| Aperture | F2.0 | |
| Focus | Auto | |
| FOV | 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120° 4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97° 6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75° 8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48° | |
| Lens Mount | M12 | |
| IR | ||
| IR Range | Up to 30 m | |
| Wavelength | 850 nm | |
| Compression Standard | ||
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile | |
| H.264+ | Main stream supports | |
| H.265 Type | Main Profile | |
| H.265+ | Main stream supports | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| Smart Feature-set | ||
| Behavior Analysis | Line crossing detection, intrusion detection | |
| Face Detection | Yes | |
| Region of Interest | Support 1 fixed region for main stream and sub-stream | |
| Image | ||
| Max. Resolution | 3072 × 2048 | |
| Main Stream | 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 ×720) | |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps(1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser | |
| Day/Night Switch | Day/Night/Auto/Schedule | |
| Network | ||
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
| Firmware Version | V5.5.3 | |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI | |
| Simultaneous Live View | Up to 6 channels | |
| Up to 32 users 3 levels: Administrator, Operator and User | ||
| Client | iVMS-4200, Hik-Connect, iVMS-5200 | |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB | |
| SVC | H.264 and H.265 encoding support | |
| Reset Button | Yes | |
| General | ||
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, Φ 5.5mm coaxial power plug PoE(802.3af, class 3) | |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 6W PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W | |
| Protection Level | IP67 | |
| Material | Metal | |
| Dimensions | Camera: Φ 70 × 155 mm Package: 216 × 121 × 118 mm | |
| Weight | Camera: approx. 410 g | |
- Bảo hành: 24 tháng.
