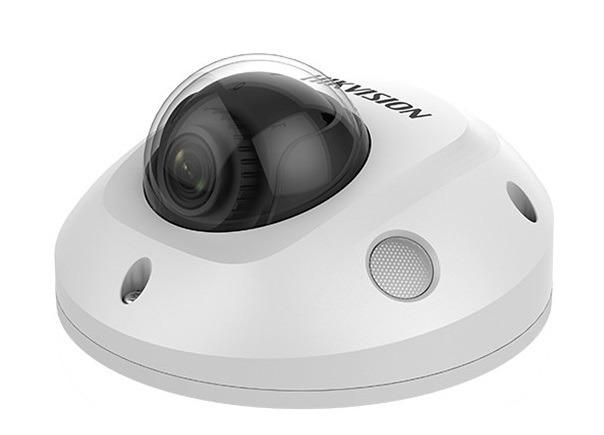

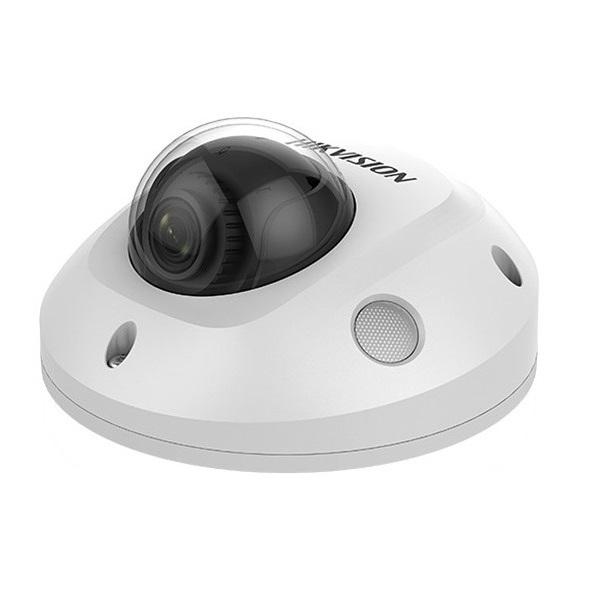

Camera IP Dome hồng ngoại không dây 4.0 Megapixel HIKVISION DS-2CD2543G0-IWS
- Cảm biến hình ảnh: 1/3 inch Progressive CMOS.
- Độ phân giải camera ip: 4.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/ H.265/ H.264+/ H.264/ MJPEG.
- Ghi hình: 25fps/30fps (2560×1440, 1920×1080).
- Ống kính: 2.8/4/6 mm.
- Độ nhạy sáng: Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR.
- Công nghệ hồng ngoại EXIR 2.0.
- Tầm quan sát hồng ngoại: 10 mét.
- Hỗ trợ 3 streams.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng quan sát ngày đêm ICR.
- Hỗ trợ cổng âm thanh/ báo động.
- Hỗ trợ kết nối không dây Wifi.
- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC.
- Tính năng thông minh: Vượt hàng rào ảo, đột nhập khu vực cấm và nhận diện khuôn mặt.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK08.
- Nguồn điện: 12VDC & PoE.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
| Slow shutter | Support |
| Shutter time | 1/3 s to 1/100,000 s |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Lens | 2.8, 4, 6 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| IR Range | Up to 10m |
Standard Compression | |
| Max. Resolution | 2688 × 1520 |
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Image | |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Day/Night Switch | Auto/Schedule/Day/Night/Triggered by Alarm In |
Network | |
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Range | 50m |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
Interface | |
| Communication Interface | 1 RJ45 10M/ 100M Ethernet interface |
| Audio | 2 Inputs: line in, or mic in (built-in microphone), 1 Output: line out, mono sound, terminal block |
| Alarm | 1 Input: Alarm in; 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block |
| General | |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption And Current | 12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W |
| Weather Proof | IP66 |
| Impact Protection | IK08 |
| Dimensions | Φ110 mm × 56.4 mm |
| Weight | 400g |
- Bảo hành: 24 tháng.
