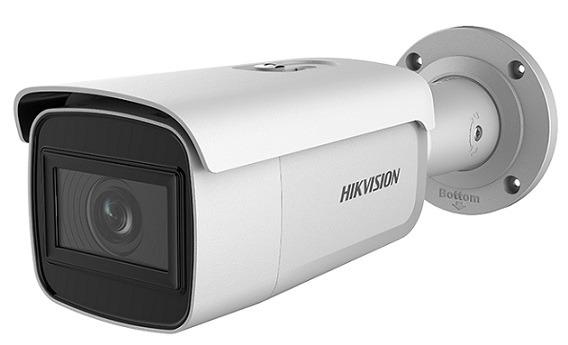

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2623G1-IZ
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Ống kính: 2.8~12mm.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264/MJPEG.
- Độ nhạy sáng Màu: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR.
- Độ phân giải tối đa: 1920 × 1080@30/25fps.
- Tầm quan sát hồng ngoại: 50 mét.
- Tính năng chống ngược sáng WDR 120dB 3D DNR; ICR; BLC; HLC.
- Hỗ trợ thẻ nhớ SD/SDHC/SDXC tối đa 128GB.
- Hỗ trợ dịch vụ Hik-Connect. Hỗ trợ tên miền Cameraddns.
- Tính năng: Phát hiện vượt hàng rào ảo, phát hiện xâm nhập. Phát hiện khuôn mặt.
- Hỗ trợ kết nối Audio/Alarm IO.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12 VDC, POE.
Đặc tính kỹ thuật
| Model | DS-2CD2623G1-IZ |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day &Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Digital noise reduction | 3D DNR |
| Focus | Auto |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 256Kbps~16Mbps |
| Image | |
| Max. Resolution | 1920 x 1080 |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm in |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication | 1 RJ45 10M / 100M Ethernet interface |
| Audio | 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| General | |
| Power Supply | 12 VDC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug |
| Power Consumption | 12 VDC, 1.2A, max. 14.5W |
| PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W | |
| Weather Proof | IP67 |
| Impact Protection | IK10 |
| IR Range | 50m |
| Dimensions | Φ 105.1 × 297.5 mm |
| Weight | 1285 g |
- Bảo hành: 24 tháng.
